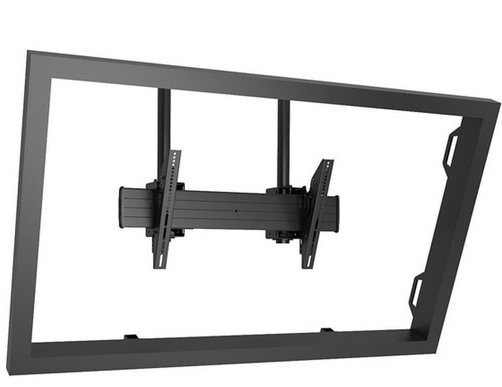

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.
Product Weight (lbs.) | 34 |
---|---|
Depth (in.) | 7.9 |
Width (in.) | 34.8 |
Height (in.) | 16.8 |
TV Size's up to (in.) | 90 |
Weight Capacity (lbs.) | 300 |
Mounting Location | Ceiling |
Certifications | UL Listed, TAA Compliant |
---|---|
Color | Black |
Mounting Pattern Compatibility (Universal Versions) | 200 x 100 mm - 800 x 400 mm |
Number Of Monitors | 1 |
Post-Installation Leveling Roll | Yes |
Shipping Weight | 34 lbs (15.42 kg) |
Tilt | +7.5 / -20˚ |
Typical Screen Sizes | 55 - 100" |
Weight Capacity | 300 lbs (136.1 kg) |
Orientation | Landscape |
Chief's XCM7000 is a dual pole drop ceiling mount for XL displays over 5" deep. See the Chief XCM1U single pole ceiling mount for lighter and thinner XL displays.
Ceiling Plate and extension column are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
Simple on/off connection for ease of installation and service.SIMPLE & SECURE
Tool free screen engagement with optional padlock security.
Dual pole drop along with locking tilt angles provide a more stable system for extremely heavy and deep displays.
TAA compliant
Product Weight (lbs.) | 34 |
Depth (in.) | 7.9 |
Width (in.) | 34.8 |
Height (in.) | 16.8 |
TV Size's up to (in.) | 90 |
Weight Capacity (lbs.) | 300 |
Mounting Location | Ceiling |
Certifications | UL Listed, TAA Compliant |
Color | Black |
Mounting Pattern Compatibility (Universal Versions) | 200 x 100 mm - 800 x 400 mm |
Number Of Monitors | 1 |
Post-Installation Leveling Roll | Yes |
Shipping Weight | 34 lbs (15.42 kg) |
Tilt | +7.5 / -20˚ |
Typical Screen Sizes | 55 - 100" |
Weight Capacity | 300 lbs (136.1 kg) |
Orientation | Landscape |
