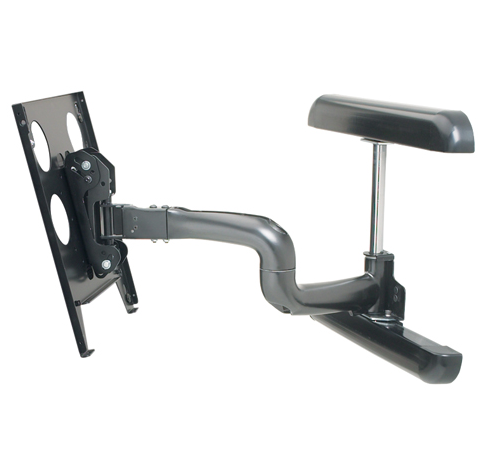

Chief® Professional AV Solutions Black Large Flat Panel Swing Arm Wall Mount-PWR2000B

Model #: PWR2000B
83507
Chief
At a Glance

Allows for viewing flexibility when installing a flat panel display. A great display mount for corporate and home entertainment applications. Standard solutions are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications

$344.00Save $NaN
$344.00

Get to know this product.

  • Extends 24.88" from wall and remains low profile in the home position
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
  • Centris Technology provides fingertip tilt adjustments
  • Mounting guides provided for a hassle-free installation
  • Provides positive latch in home position to keep screen tight to wall
  • CableTrac System provides a fast and effective way to route cables
  • UL listed for proven strength
  • Swivel up to 90° left or right (depending upon screen size)
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Specifications

General

ColorBlack
Lateral Shift12" (304.8mm)
Maximum Screen Thickness25" (635 mm)
Minimum Depth3.38" (85.9mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200mm - 862 x 517mm
NotesDepth and Extension do not include interface bracket (adds 0.5 - 1.5")
Overall Dimensions (H x W x D)18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
Post-Installation Leveling RollYes
Shipping Weight37 lbs (16.78 kg)
Solution TypeCustom
Tilt+ 5° , - 15°
Typical Screen Sizes32 - 65"
Wall Stud Compatibility In16" (406 mm)
Weight Capacity125 lbs (56.7 kg)
OrientationLandscape, Portrait

Misc. Specs

Product Weight37
TiltYes
Depth (in.)3.4
Width (in.)23.6
Height (in.)18
TV Size's up to (in.)55
Weight Capacity (lbs.)125
Mounting LocationWall
WarningProposition 65 Warning for California Residents
