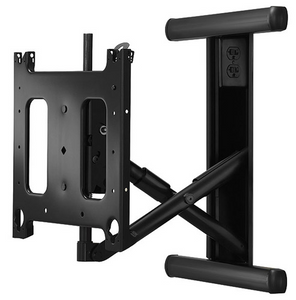

Chief® Professional AV Solutions Black Large Low Profile In Wall Swing Arm Mount
Model #: PIWRF2000B
$816.80
At a Glance
Create a low-profile installation when mounting a flat screen display with articulation.
Proposition 65 Warning for California Residents
General Specs
| Product Weight (lbs.) | 52.25 |
|---|---|
| Tilt | Yes |
| Depth (in.) | 5.5 |
| Width (in.) | 20.4 |
| Height (in.) | 22.8 |
| TV Size's up to (in.) | 71 |
| Weight Capacity (lbs.) | 200 |
| Mounting Location | Wall |
General
| Color | Black |
|---|---|
| Lateral Shift | 5" (127.mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Maximum Extension | 15" (381 mm) |
| Minimum Depth | 1.7" (43.2 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200mm - 862 x 517mm |
| Notes | Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
| Pivot Numerical Value | +/- 40.3°(depending on screen width) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 52.25 lbs (23.7 kg) |
| Solution Type | Universal |
| Tilt | + 2° , - 15° |
| Typical Screen Sizes | 42 - 71" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Orientation | Landscape, Portrait |
Chief® Professional AV Solutions Black Large Low Profile In Wall Swing Arm Mount
Model #: PIWRF2000B
83461
Model #: PIWRF2000B
Chief
$816.80
$816.80
At a Glance
Create a low-profile installation when mounting a flat screen display with articulation.
People also viewed:
Chief® Professional AV Solutions Medium Flat Panel Swing Arm Wall Mount-Black
Model #: MWRSKUB$685.60
Get to know this product.
Key Features
Limitless centering on the wall between 16" center studs without cutting studs
Low profile design ensures the mount remains concealed behind the flat panel
Centris Technology uses the center of gravity to achieve smooth, fingertip tilt
ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
Easy connect/disconnect with no tools needed
Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)
Integrated cable management
