Product Dimensions 17.6"h x 27.81"w x 0.75"d

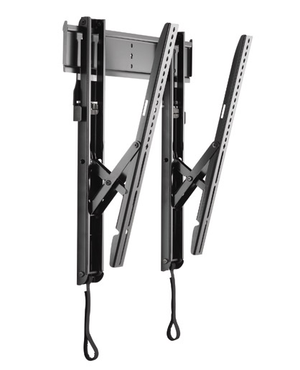

The MTT is one of the world's thinnest universal tilt wall mounts with a low-profile design compliments the new ultra-thin flat panel TVsRead More
Designed specifically for and only compatible with new ultra-thin TVs 2” (51 mm) deep or less
Ultra low-profile design compliments ultra-thin flat panel TVs
Provides 12° of smooth, fingertip tilt
GlideLock provides tool-less latching for faster installation
Consists of one-piece steel bracket with two tilting interfaces
Each interface includes a sliding flat for increased security
Features a cable stand and bottom pullout for cable access
Provides lateral shift for increased flexibility
Can be installed in landscape mode only
NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation
General Specs | |
| Color/Finish Name | Black |
| TV Size's up to (in.) | 47 |
| Mount Type | Tilt |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 100 x 100mm - 600 x 400mm |
| Number Of Mounts | 1 |
| Tilt | Yes |
| Low Profile | Yes |
| Weight Capacity (lbs.) | 100 |
| Width (in.) | 27.81 |
| Depth (in.) | 0.75 |
| Height (in.) | 17.6 |
| Product Weight (lbs.) | 12.55 |
| Collection | Thinstall™ |
General | |
| Certifications | UL Listed |
| Lateral Shift | Depends on mounting pattern of screen |
| Maximum Screen Thickness | 2" (51 mm) |
| Solution Type | Universal |
| Tilt | + 0° , - 12° |
| Typical Screen Sizes | 26 - 47" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Orientation | Landscape |
