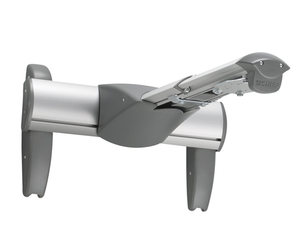

Chief® Silver Manufacturing Ultra Short Throw Wall Mount-WM210S

Model #: WM210S
98717
Chief
At a Glance

The WM210S provides ideal placement and alignment for short throw projector mounting on dual studs.

$173.60Save
$173.60

Get to know this product.

  • Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately)
  • Also supports wall-mounted long-throw projectors.
  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Integrated lateral shift
  • Extension from wall, 12.75"-19.50" (324-495 mm)
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
  • Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
  • Includes short throw arm only, projector mount must be ordered separately
  • Includes hardware for wood stud, steel stud and concrete wall construction
  • Also supports long-throw projectors
Useful Documents
Specifications

General

AdjustmentsRoll: 0°, Pitch: 3°, Yaw: 0°
CertificationsUL Listed
ColorSilver
Extension12.8" - 20"
Lateral Shift10" (254 mm)
Overall Dimensions (H x W x D)11.5" x 19.6" x 23.1" (293 x 499 x 586 mm)
Shipping Weight20 lbs (9.07 kg)
Solution TypeUniversal
Weight Capacity50 lbs (22.7 kg)

Misc. Specs

Depth (in.)23.1
Height (in.)11.5
Weight Capacity (lbs.)50
Mounting LocationWall
WarningProposition 65 Warning for California Residents
