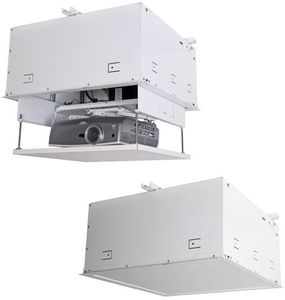

The SL151 provides exceptionally smooth and quiet movement and is a great option for suspended and finished ceilings in homes and corporate offices. (120V)
Adjustments | Roll: 2°, Pitch: 20°, Yaw: 5° |
---|---|
Ceiling Closure | 20.2" x 20.3" ( 514 x 515 mm) |
Ceiling Opening | 23.5" x 23.5" x 11.2" (597 x 597 x 284 mm) |
Certifications | FCC Approved, UL Listed, TAA Compliant |
Extension | 8.3" |
Max Equipment Size H x W x D | 8.4" x 18.3" x 18.3" (213 x 464 x 464 mm) |
Weight Capacity (lbs.) | 35 |
---|---|
Mount Type | Fixed |
Voltage | 120 |
Amp | 12 |
Mounting Location | Ceiling |
Collection | SMART-LIFT |
Color Finish Name | White |
Must order SLB interface bracket separately
Precise positioning including vertical projector cradle adjustment and fore/aft projector positioning
Quick connect/disconnect for convenient lamp and filter access on most projectors
Maintains registration even when disconnected
Independent roll, pitch and yaw
Low profile, requires minimal clearance above the ceiling
Easy installation, the drop-in design fits into a 2' x 2' suspended ceiling
Multiple installation options: three 0.38" (10 mm) threaded rods, 1.5" NPT threaded extension column with SMA602 accessory, or side mount with built-in joist tabs
UL Listed
TAA compliant
