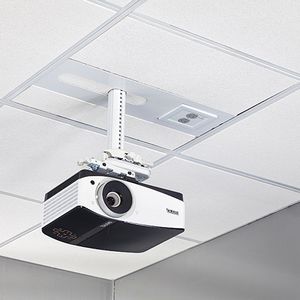

Chief® White Suspended Ceiling Projector System
$645.60
At a Glance
Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.
Proposition 65 Warning for California Residents
General Specs
| Depth (in.) | 24.94 |
|---|---|
| Height (in.) | 19.82 |
| Weight Capacity (lbs.) | 59171 |
| Mounting Location | Ceiling |
General
| Adjustments | Roll, Pitch, Yaw (3°, 10°, 360°) |
|---|---|
| Certifications | UL Listed |
| Color | White |
| Extension | 0 - 12" ( 0 - 304.8 mm) |
| Notes | Output: 15A, 1875 W continuous |
| Overall Dimensions (H x W x D) | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Power Requirements | Power Consumption: <0.5 watt; Type 3 Surge Protective Device (SPD); Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G; Maximum Continuous Operating Voltage (MCOV): 240V; Nominal Discharge Current (In): 3kA; Short Circuit Current Rating (SCCR): 5kA; Ambient Temperature Max: 40 degrees C |
| Shipping Weight | 25.00 lbs (11.34 kg) |
| Solution Type | Universal |
| Weight Capacity | 35 lbs (15.9 kg) |
Chief® White Suspended Ceiling Projector System
Model #: SYSAUWP2
$645.60
At a Glance
Get to know this product.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
System comes out of box in the order needed with mount and column preassembled
Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids. Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
Detachable electric plate for pre-wiring. Compatible with popular 2 gang adjustable mud rings
Tool-Free Microzone adjustment eliminates the need for set screws
Centris Technology enables effortless fingertip positioning with new tool-free lockdown
Adjustable 0-12" column with dual inlay channels for high and low voltage cables
Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
Improved universal interface for easier lock/unlock at projector connection
Non-volatile spike protection with LED power indicator
Non-sacrificial multi-stage technology
Non-current limiting design passes full power on a regular circuit; redundant protection circuits
Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
Line filter reduces common and differential mode noise by up to 40 dB
Rated for 125V~, 60Hz, 15 A
1800 watt maximum
Ferrite toroid based EMI Filter
Withstand rating of 240 VAC continuous without damage or loss of protection
