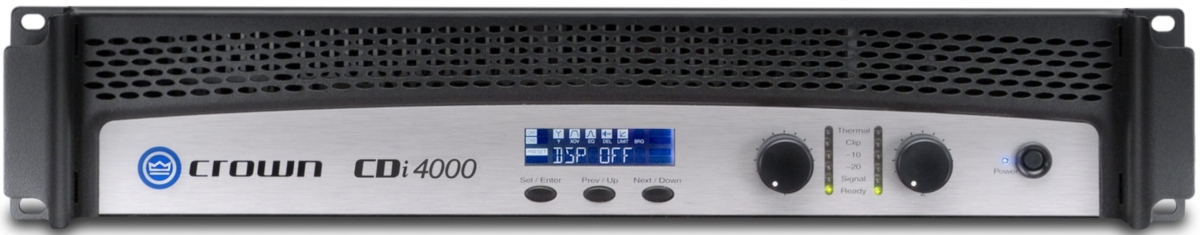

Crown® Audio CDi 4000 2 Channel Power Amplifier

Crown Audio

Model #:

CDI4000

At a Glance

Product Dimensions 3.5"h x 19"w x 12.25"d

The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight, and offer unmatched value in their class.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs.

Switch-mode universal power supply.

Intuitive front-panel LCD screen for quick, easy configuration.

Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting.

Up to 20 user defined DSP presets are available.

Useful Documents
Cutsheet
Comparison Chart
Operation Manual
Specifications

General Specs

Depth (in.)12.25
Height (in.)3.5
Impedance20k ohms balanced, 10k ohms unbalanced
Width (in.)19
Frequency Response+ 0 dB, -1 dB(at 1W, 20 Hz - 20 kHz)
Channels2
Color Finish NameBlack
Product Weight (lbs.)22
CollectionCDi
ColorBlack

General

Channels2
Sensitivity (for full rated power at 8 ohms)1.4V
Rated Power Output (per channel @ 4 ohms)1200W Stereo
Signal to Noise Ratio (below rated 1 kHz power at 8 ohms)100 dB (A-weighted)
THD< 0.5%
Damping Factor (20 Hz to 400 Hz)> 500
Frequency Response (at 1W, 20 Hz - 20 kHz)+ 0 dB, -1 dB
Crosstalk (below rated power) 20 Hz to 1 kHz>70 dB
Input Impedance (nominal)20k ohms balanced, 10k ohms unbalanced
Dimensions3.5" x 19" x 12.25"
Weight22.0 lbs
IEC Power Connector15A
