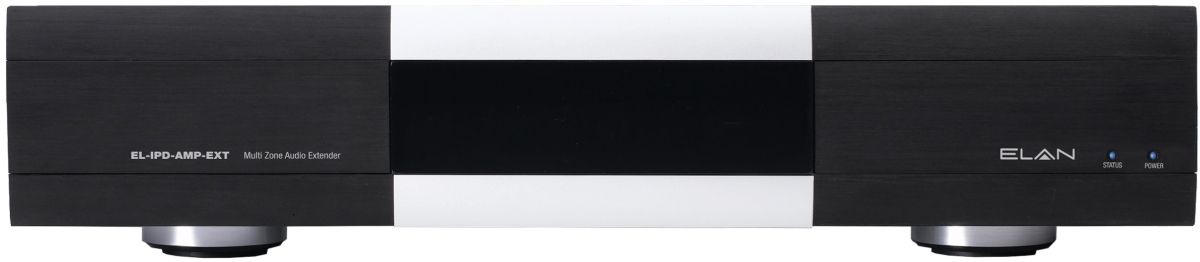

ELAN® Multi Zone Audio Extender

Product Overview

The EL-IPD-AMP-EXT is used in conjunction with an amplifier or preamp in the ELAN family of IP enabled amps to add up to 8 zones of audio.

Configure speaker outputs as left, right, or mono with single or multiple speakers connected to each. Four line level audio outputs can be configured as left, right, mono, or subwoofer out.

Each output or combination of outputs can be configured as separate zones with EQ and lip sync delay applied to any zone individually.

ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by delivering high quality audio over the existing network. Easily scaling from a single chassis solution to a decentralized multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of up to 64 individual zones.

4 Stereo or 8 Mono Ampli?ed Zones and 2 Stereo or 4 Mono Pre-amp Zones

80WPC at 8O, 100WPC at 4O

DSP with 5-Band EQ for Each Zone

Lip Sync Correction

Dante Audio Networking
