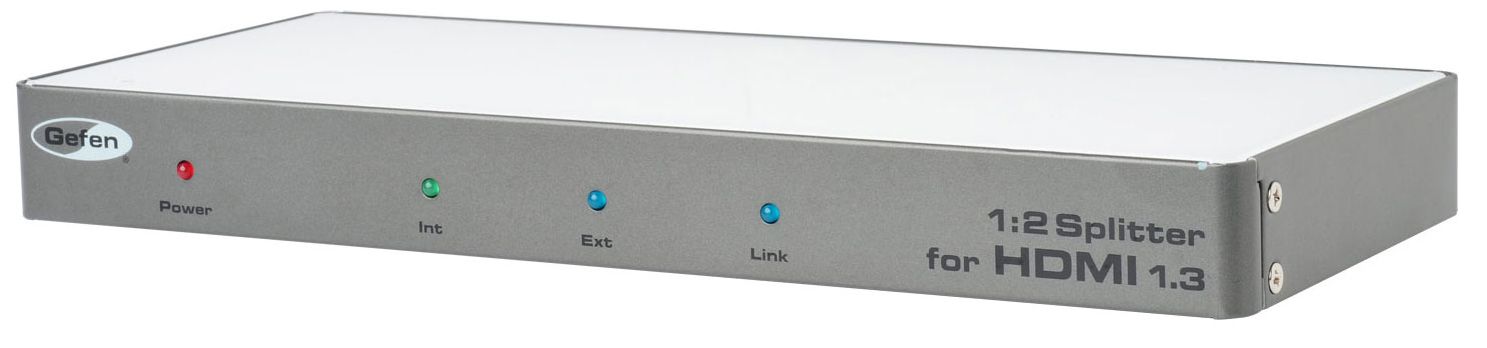

Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio

Model #: EXT-HDMI1.3-142D
399695
Gefen
At a Glance

Split HDMI 1.3 to 2 HDTV Displays -- with additional optical digital audio output

$365.00Save $NaN
$365.00

Get to know this product.

The EXT-HDMI1.3-142D 1:2 Splitter for HDMI 1.3 with Digital Audio sends a Hi-Def A/V source to up to two HDTV displays at the same time without losing quality or resolution. This product works with any Hi-Def source supporting resolutions up to 1080p Full HD with Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. A TOSLINK output on the rear of the Splitter feeds digital audio to an external amplifier or receiver for additional installation flexibility.

  • Full HD resolutions up to 1080P (1920x1080) are supported.
  • Support for 2 channel PCM, and up to 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through from the sources to the HDMI outputs.
  • Simultaneously displays a single Hi-Def source on up to two (2) HDTV displays without signal loss
  • Maintains sharp HDTV resolutions up to 1080p Full HD and 2K
  • 3DTV Pass-Through
  • EDID Management for rapid integration of sources and display devices.
  • Locking HDMI Connectors
  • Built-in TOSLINK audio output connector
  • Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter
  • HDMI and HDCP compliant
Specifications

Shipping Information

Length13.25 (Inches)
Width8.25 (Inches)
Height3.65 (Inches)
Weight3.5 (Lbs)

General

Video Amplifier Bandwidth225 MHz
Input Video Signal1.2 Volts p-p
Input DDC Signal5 Volts p-p (TTL)
Single Link Range1080P/1920 x 1200
HDMI Input ConnectorType A, 19-pin female
HDMI Output Connectors(2) Type A 19-pin female
Audio Output ConnectorTOSLINK
Power Supply5V DC
Power Consumption13 Watts (max.)
Operating Temperature0 - 40
Dimensions10.25"W x 1"H x 4.25"D
Shipping Weight4 lbs.

In The Box

Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio (EXT-HDMI1.3-142D)(1)
6 ft. HDMI Cable (M-M) (CAB-HD-LCK-06MM)(1)
5V DC Power Supply (EXT-PS526AIP)(1)
Quick-Start Guide (QSG-HDMI1.3-142D)(1)

Misc. Specs

Width (in.)8.25
Height (in.)3.65
Manufacturer Warranty2 Year
Product Weight3.5
