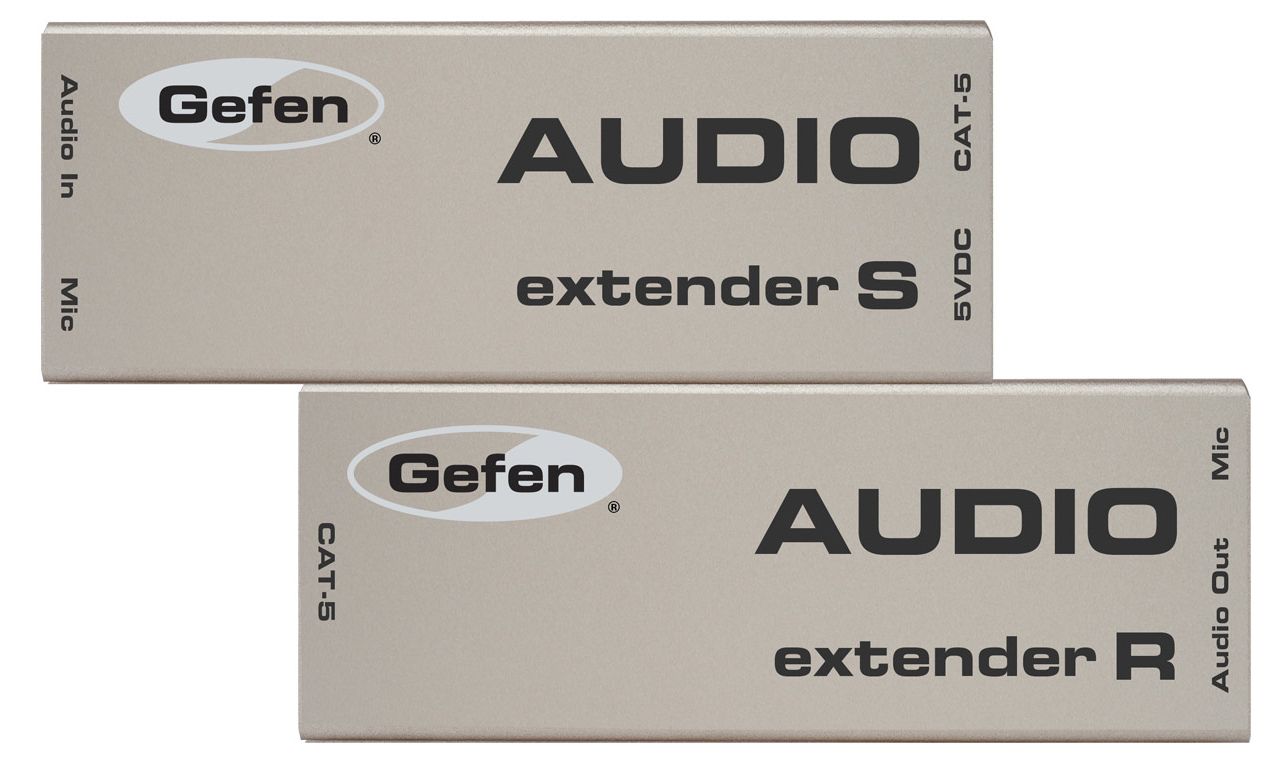

Gefen 2-way Audio Extender over one CAT-5


Model #:

EXT-AUD-1000

Model #: EXT-AUD-1000
399460
Gefen
$99,999.00

At a Glance

The Gefen EXT-AUD-1000 Audio Extender is capable of extending microphone and stereo analog audio up to 1000 feet. The sender unit sits next to your audio source. Stereo cables supplied with the Audio Extender package connects your audio source to the sender. The receiver unit connects to your speakers or audio output device. One CAT-5 cable connects the sender and the receiver.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Extends Mic and Headphones to/from computer and workstation

The EXT-AUD-1000 supports stereo analog audio.

Extends any unbalanced analog audio device up to 1000 feet (300 meters) from the source

One CAT-5e cable used for extension

Bidirectional transmission for speaker and mic

Useful Documents
Specifications

General Specs

Product Weight (lbs.)1.05
Width (in.)5.8
Height (in.)3
Manufacturer Warranty2 Year

Shipping Information

Length9.1 (Inches)
Width5.8 (Inches)
Height3 (Inches)
Weight1.05 (Lbs)

General

Frequency Response20Hz - 20kHz
Input Impedance1K Ohm
Output Impedance0.1 Ohm
Audio ConnectorsMini-phone Stereo 3.5mm
Link ConnectorRJ-45 Shielded
Power Supply5V DC
Power Consumption5W (max)
Dimensions1.3" W x 0.8" H x 3.7" D
Shipping Weight3 lbs.

In The Box

Audio Extender S Sender Unit(1)
Audio Extender R Receive Unit(1)
6 foot audio cable(1)
5V DC power supply (EXT-PS51AIP or EXT-PS51AIP-6)(1)
WarningProposition 65 Warning for California Residents
