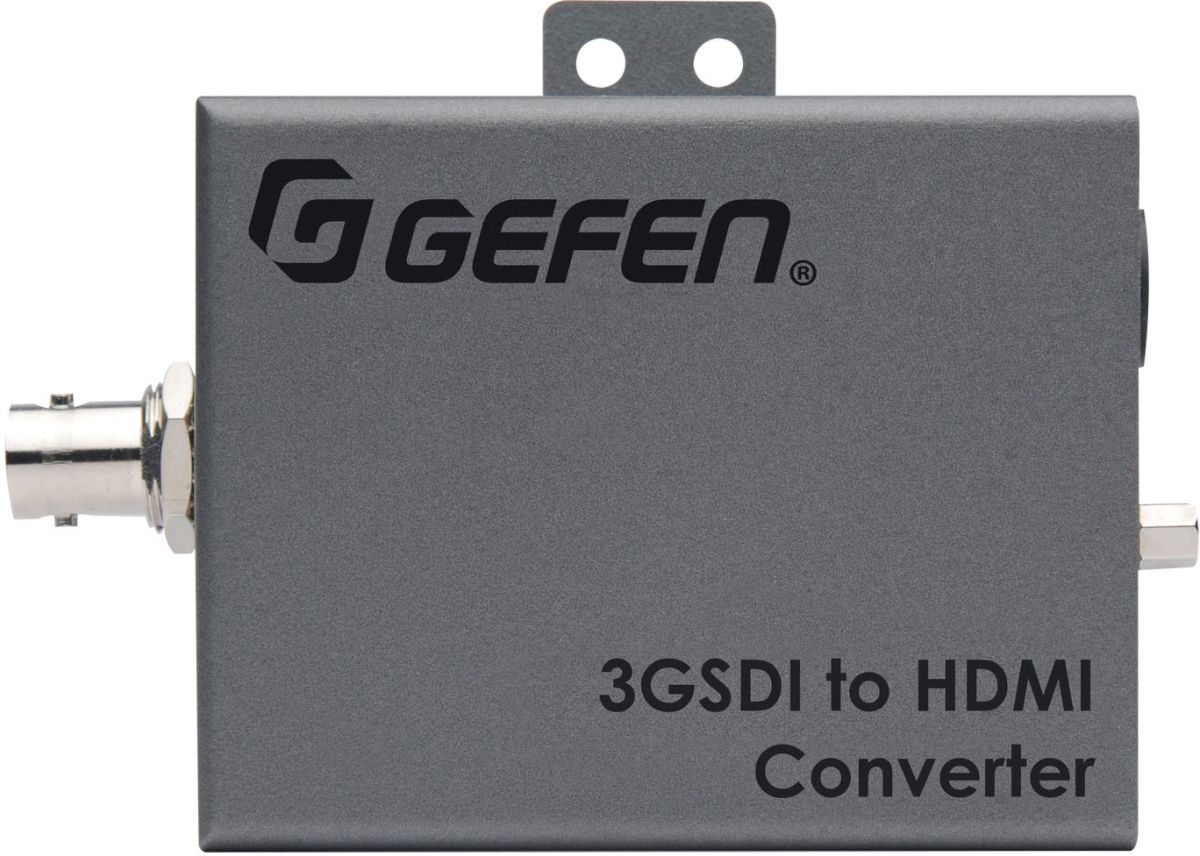

Product Overview
The Gefen EXT-3G-HD-C’s compact enclosure, while light enough to be held in place using double sided Velcro® tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-3G-HD-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.
Video Support
This converter supports input resolutions up to 1080p (1920 x 1080 at 60 Hz 10- Bit 4:4:4 (RGB or YCbCr) and output resolutions up to 1080p Full HD (1920 x 1080 at 60 Hz 10- Bit 4:4:4 (RGB or YCbCr).
Audio Support
The EXT-3GHD-C supports stereo and multi-channel audio up to LPCM 7.1.
Features
Converts SDI to HDMI
Input resolutions up to 1080p60
Output resolutions up to 1080p Full HD
HDMI (YCbCr 4:4:4) or DVI (RGB 4:4:4) output modes
Supports 3G-SDI Levels A and B, Single-Link HD-SDI, and SD-SDI
Supports up to 10 bit color on input and output
Up to LPCM 7.1 audio support
Field configurable via DIP switch settings
Mini USB port for use with Gefen Syner-G for in-field firmware updates
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
1/4-20 industry-standard camera gear attachment thread on bottom
Surface-mountable using the included detachable bracket
