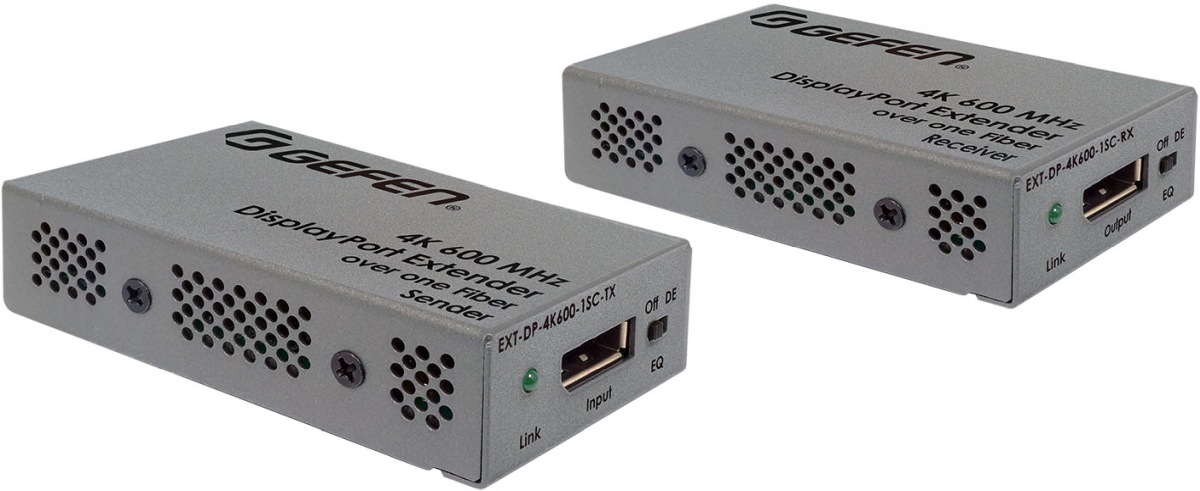

Gefen® 4K 600 MHz DisplayPort Extender Over One SC-terminated Fiber Optic Cable

Product Overview

The AV signal can be extended up to 200m (660ft), over a single strand of SC-terminated 50/125 um OM3 or better multi-mode fiber-optic cable. There is full electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. The EXT-DP-4K600-1SC can be powered from sources and displays featuring powered USB ports, or by using external power supplies.

For most applications, the Sender and Receiver are plug-and-play and will work without any set-up. In cases where signal optimization becomes necessary due to special requirements of a source and/or a display, both units feature easy-to-use EQ switches. The EXT-DP-4K600- 1SC supports popular and useful DisplayPort technologies such as Multi-streaming (connecting multiple daisy-chained displays to one DisplayPort output) and Auxiliary Channel (transporting data and controls along with the AV signal).

Features

Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600 MHz)

Fully compliant with DisplayPort 1.2 standard

Supports WQUXGA (4K; 3840×2400), 4K Ultra HD (3840 x 2160), and 4K Cinema – DCI (4096 x 2160) at 60Hz, 4:4:4

Extension up to 200m (660 feet) over one (1) SC-terminated multi-mode OM3 or better (50/125um) optic cable

HDCP 2.2, HDCP 1.4, and DPCP compliant

Supports DisplayPort Auxiliary/l²C channel

Supports DisplayPort Multi-stream technology

Compact enclosures are easy to install and can be hidden away.

Sturdy metal construction of the enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI).

Plug & Play no configuration or set-up required for most applications

EQ switches on Sender & Receiver ensure compatibility with most sources & displays
