Product Dimensions 1.7"h x 16.9"w x 6.3"d

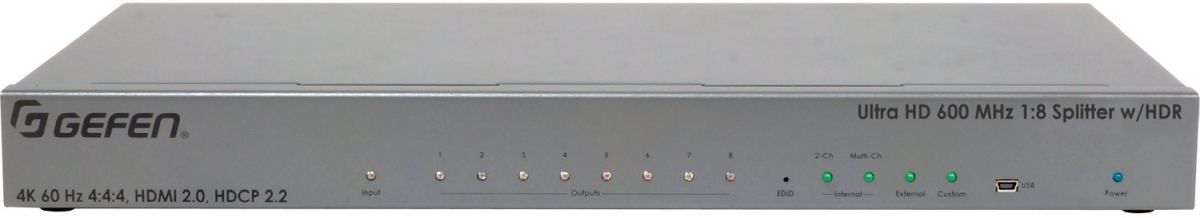

Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. The Gefen EXT-UHD600-18 splitter distributes signal from one 4K source, and distributes it to up to eight 4K displays or video zones.Read More
The splitter features a 1U tall, rack-mountable enclosure that can also be placed on a shelf. It also accommodates Gefen locking HDMI cables for secure connections.
Gefen’s Ultra HD 600MHz Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefen's Ultra HD 600MHz Series creates a seamless bridge between the digital media of yesterday, today, and tomorrow.
Simultaneously displays an Ultra Hi-Def source on up to eight Ultra HD displays
Specifically designed to support multiple layers of splitting/cascading in large video distribution and signage applications, supporting up to hundreds of displays
Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920×1200 (WUXGA)
Supports HDCP 2.2 and 1.4
Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
3DTV pass-through
Lip Sync pass-through
EDID Management and Audio Mode selectors for rapid integration of source and displays
Supports uncompressed LPCM digital audio up to 7.1 channels
Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA), with HDMI-to-DVI adapters (not included)
Advanced EDID and HDCP Management via USB, using the Gefen Syner-G software
In-field firmware update via USB, using the Gefen Syner-G software
General Specs | |
| Product Weight (lbs.) | 2.5 |
| Color | Gray |
| Depth (in.) | 6.3 |
| Width (in.) | 16.9 |
| Height (in.) | 1.7 |
| Voltage | 5 |
| Wattage | 14.5 |
| Manufacturer Warranty | 3 Year |
| Color Finish Name | Gray |
| Shipping Depth (in.) | 19.5 |
| Shipping Width (in.) | 12.2 |
| Shipping Height (in.) | 4.7 |
