Product Overview
Video Support
Gefen's Ultra HD 600MHz Series 4x1 switcher takes HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefen's Ultra HD 600MHz Series creates a seamless bridge between the digital media of yesterday, today, and tomorrow. Supporting the digital rights management standard for Ultra High Definition content, HDCP 2.2, as well as the legacy HDCP 1.4, Gefen's Ultra HD 600MHz Series of products can handle the signal routing needs for both existing and new digital AV components in commercial AV systems.
Audio Support
The Ultra HD 600MHz Series supports stereo and multichannel digital audio including 7.1 channels of LPCM as well as the highest performance HBR (High Bit Rate) digital audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master.
Multilayer Cascading
These splitters have been specifically designed to support multiple layers of cascading for flawless performance in large video distribution and signage applications, supporting up to hundreds of displays.
Syner-G™ Support
Gefens Ultra HD 600MHz Series was designed to work with Gefens Syner-G™ software suite. EDID and HDCP management, status monitoring, and firmware updates can be done in minutes using the Gefen Syner-G software.
Routes up to four Ultra Hi-Def sources to one Ultra HD display
Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920x1200 (WUXGA)
Supports HDCP 2.2 and 1.4
Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
3DTV pass-through
Lip Sync pass-through
Advanced EDID and HDCP Management via Web Server Interface for rapid integration of sources and display
Supports uncompressed LPCM digital audio up to 7.1 channels
Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA), with HDMI-to-DVI adapters (not included)
Configurable Automatic Input Switching selects the most recent connected or powered-up source

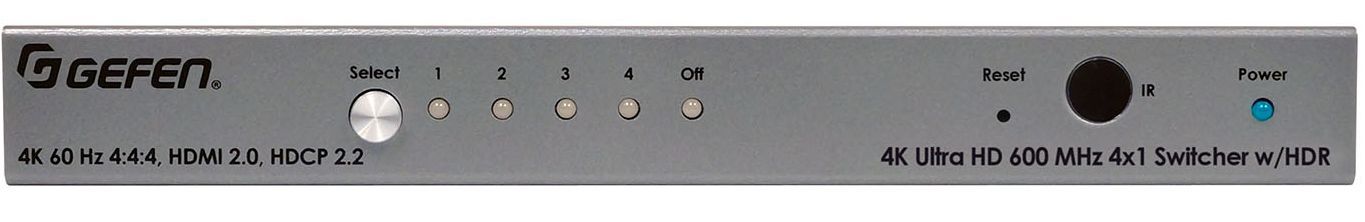

Front Panel Push button Input Selector routes one of the 4 connected sources to the display, or “Blocks” (turns off) the input
RS-232 Serial interface for use with an automation control system
IP control via Telnet, UDP, and the built-in web server interface
IR remote control
Small surface-mountable IR Extender module allows the switcher to be hidden away behind the display or in the equipment closet
Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration
In-field firmware update via Web Server Interface
Long Reach Power (LRP) provides 500 mA at 5V on pin 18 of HDMI output. Enables select extender devices to be powered through their HDMI input port
Locking power connector ensures reliable operation
Low-profile, surface-mountable enclosure can be surface mounted, placed on a shelf, or hidden away behind the display
