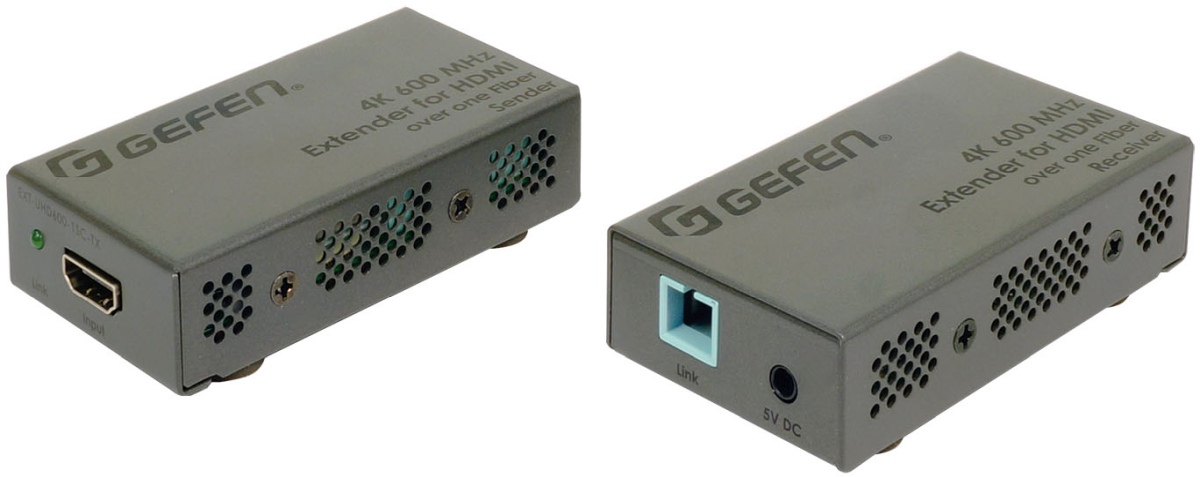

Product Overview
It supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. Full bandwidth support allows the Gefen extender to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 are both supported. The EXT-UHD600-1SC also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI outputs. There is full electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. This extender can be powered from sources and displays featuring powered USB ports, or by using external power supplies.
Features
Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
Extension up to 200m (660 feet) over one SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
3DTV pass-through
Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920×1200)
Lip Sync pass-through
Supports HDCP 2.2 and 1.4
Supports uncompressed LPCM digital audio up to 7.1 channels
Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
Supports 12-bit Deep Color at 1080p Full HD (60 Hz 4:4:4)
Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920×1200), with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (not included)
Sturdy metal construction of the enclosures help provide immunity against ElectroMagnetic Interference (EMI) and radiated noise (RFI)
Plug & Play – no configuration or set-up required for most applications
Compact enclosures are easy to install and can be hidden away
