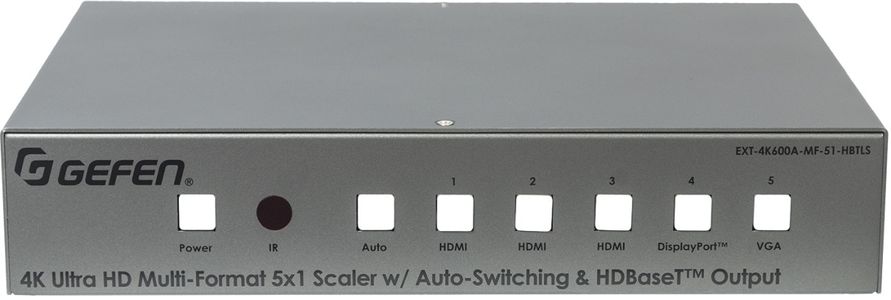

Product Overview
The five video inputs, along with their embedded or assigned audio, can be switched automatically or manually. Control options include the front panel, hand-held IR remote with On-Screen-Display, electrical IR, RS-232, Telnet/UDP, web server interface & contact closure.
The split HDMI and HDBaseT outputs feature a scaler, configurable to 3840 x 2160, 30 Hz, 4:4:4. They feed a local and a remote display simultaneously, adding flexibility in larger presentation environments. The Switcher and its recommended Receiver (the EXT-UHDA-HBTL-RX, sold separately) use Gefen’s implementation of the HDBaseT technology to extend the HDMI output of the Switcher up to 230 feet/70 meters at 1080p Full HD and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. The HDMI and DisplayPort inputs support resolutions up to 4K DCI (4096 x 2160) 60 Hz 4:4:4, with HDCP 2.2 and 1.4. The HDMI input & output, and the HDBaseT output support 2 channels of LPCM digital audio.
Features
Automatic switching of all video inputs
Manual switching of video inputs via front panel buttons, handheld IR remote, electrical IR, RS-232, Telnet/UDP, and web server interface
Selectable 48V Phantom Power for Mic Input
Microphone Ducking feature
HDMI and DP inputs support up to 600 MHz TMDS clock and 18 Gbps data throughput۬
HDMI and DP inputs support up to 4K DCI 4096 x 2160, 60 Hz, 4:4:4 and 4K Ultra HD 3840 x 2160, 60 Hz, 4:4:4
VGA input supports up to WUXGA (1920 x 1200, 60 Hz, 4:4:4) and 1080p Full HD (60 Hz, 4:4:4)
HDMI and HDBaseT outputs support up to 300 MHz TMDS clock and 10.2 Gbps data throughput
HDMI and HDBaseT outputs support up to 4K Ultra HD 3840 x 2160, 30 Hz, 4:4:4
Configurable built-in scaler up to 3840 x 2160, 30 Hz, 4:4:4
Each of the 5 unbalanced audio inputs can be associated with any of the video inputs and be embedded into then HDMI and HDBaseT™ outputs
Inputs:
3x HDMI
1x DisplayPort
1x VGA
5x L/R Unbalanced Analog Audio
1x L/R Balanced and Unbalanced Mic/Line
Outputs:
1x HDMI
1x HDBaseT
1x L/R Unbalanced Analog Audio
