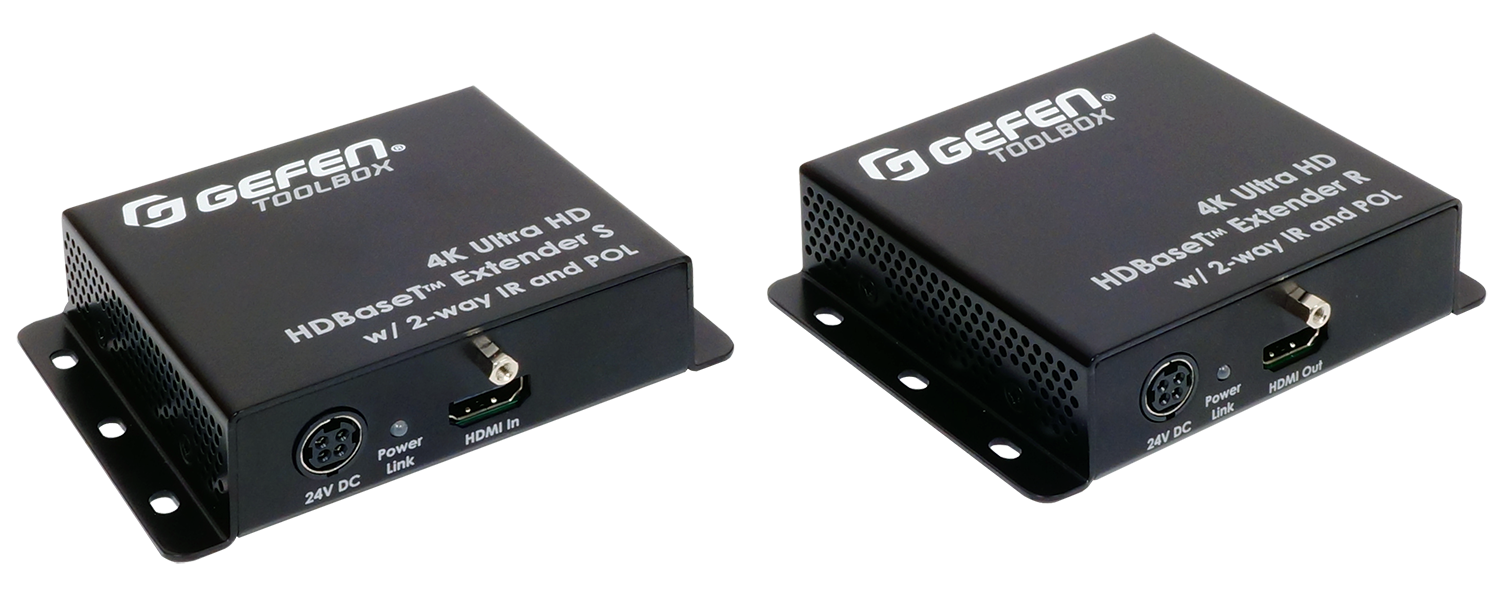

Gefen 4K Ultra HD HDBaseT Extender

Gefen

Model #:

GTB-UHD-HBTL

Model #: GTB-UHD-HBTL
400650
Gefen
$99,999.00

At a Glance

Product Dimensions 1"h x 4.3"w x 3.2"d

The GTB-UHD-HBTL 4K Ultra HD Extender uses Gefen’s implementation of the HDBaseT™ technology to extend HDMI up to 230 feet/70 meters at 1080p and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

The GTB-UHD-HBTL 4K Ultra HD Extender uses Gefen’s implementation of the HDBaseT™ technology to extend HDMI up to 230 feet/70 meters at 1080p and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) with 7.1 channels of HBR (High Bit Rate) lossless digital audio are supported. This product provides 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen’s Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.

IR extension from Sender to Receiver and from Receiver to Sender

Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power

Uses Gefen’s implementation of HDBaseT™ technology with enhanced features

Advanced EDID Management

Locking power connector

Surface mountable

Extends HDMI and Bi-Directional IR over a single CAT-5e/CAT-6A:

4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)

4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)

4K Cinema (DCI) (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)

1080p Full HD (60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)

HDMI Features Supported:

HDMI 2.0

HDCP 2.2 and 1.4

12-bit Deep Color

LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through

3DTV pass-through

CEC pass-through

Lip Sync pass-through

Useful Documents
Manual
Specifications

General Specs

Product Weight (lbs.).4
Depth (in.)3.2
Width (in.)4.3
Height (in.)1
Voltage24
Wattage12
Color Finish NameBlack
Manufacturer Warranty3 Year

General

Maximum Pixel Clock300 MHz
Video Input connector (Sender)(1) HDMI Type A 19-pin, female, locking
Video Output connector (Receiver)(1) HDMI Type A 19-pin, female, locking
Link connector (Sender/Receiver)(1) RJ-45, shielded
IR Ext/In port (Sender/Receiver)(1) 3.5mm mini-mono jack
IR Extender typeEXT-RMT-EXTIRN
IR Out port (Sender/Receiver)(1) 3.5mm mini-mono jack
Power/Link Indicator LED (Sender/Receiver)(1) Bi-color(1) Bi-color: Blue/Green
Power Supply(1) 24V DC, locking
Power Consumption (Sender and Receiver combined)10W maximum
Operating Temperature+32 to +122 °F (0 to +50 °C)
Operating Humidity5% to 90% RH, non-condensing
Storage Temperature-4 to +185 °F (-20 to +85 °C)
Storage Humidity0% to 95% RH, non-condensing
MTBF50000 hours
Dimensions (W x H x D, Sender/Receiver)4.3" x 1" x 3.2" (110mm x 26mm x 85mm)
Net Weight (Sender/Receiver)0.4 lbs (0.2 kg) each
Net Unit Weight2.3 lbs. (1.1 kg)

In The Box

Sender unit (GTB-UHD-HBTL-S)(1)
Receiver unit (GTB-UHD-HBTL-R)(1)
6 ft. Locking HDMI cable (CAB-HD-LCK-06MM)(1)
IR Emitter (EXT-IREMIT)(1)
IR Extender (EXT-RMT-EXTIRN)(1)
24V DC power supply (EXT-PS24U1AIP or EXT-PS24U1AIP-6)(1)
Quick-Start Guide (QSG-GTB-UHD-HBTL)(1)
