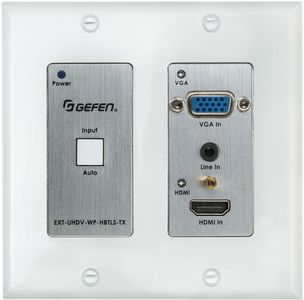

Product Overview
Switching between the HDMI and VGA can be set to Automatic or be done manually via the front panel button or RS-232. It supports 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, accepting HDMI 2.0 signals up to 4K 60 Hz 4:2:0 or 4K 30 Hz 4:4:4. This extender uses Gefen’s implementation of the HDBaseT technology with enhancements such as Advanced EDID Management. The HDMI input accommodates resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:2:0, or 30 Hz 4:4:4), with HDCP 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI output. The VGA input features a companion L/R analog audio input, and accepts VESA and CEA resolutions up to WUXGA (1920 x 1200 to 60 Hz, 4:4:4) and 1080p Full HD (1920 x 1080 at 60 Hz, 4:4:4).
Features
Supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
Automatic switching of 4K HDMI and VGA
Manual switching of 4K HDMI and VGA via front panel button or RS-232
VGA scaling up to 1920 x 1200 with picture adjustments
Extend HDMI, VGA with analog audio, and RS-232 over a single CAT-5e:
4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
4K Cinema (DCI) (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
1080p Full HD (60 Hz) or WUXGA (1920×1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
Analog L/R audio input for VGA
RS-232 control of switching, scaler, and EDID management functions
Bi-Directional RS-232 extension when used with a compatible receiver
