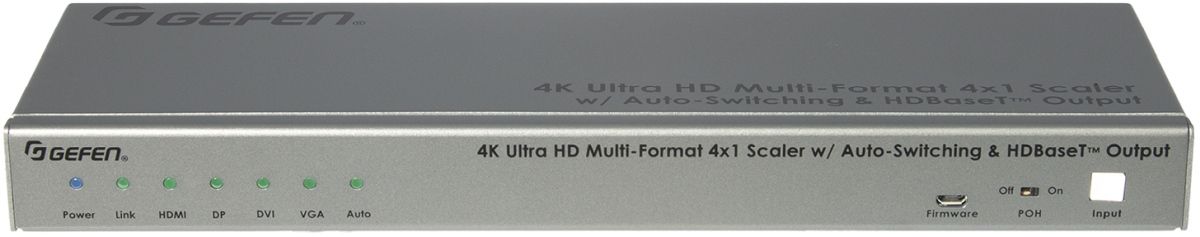

Product Overview
The 4 inputs can be switched automatically or manually. Control options include the front panel, a hand-held IR remote, electrical IR, RS-232, and contact closure. The split HDMI and HDBaseT outputs can simultaneously feed a local and a remotely-installed display, adding flexibility in larger presentation environments.
This 4×1 Switcher and its recommended Receiver (the EXT-UHDA-HBTL-RX, sold separately) use the Gefen implementation of the HDBaseT technology to extend the HDMI output of the Switcher up to 230 feet/70 meters at 1080p Full HD and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. The HDMI and DisplayPort inputs support resolutions up to 4K 60 Hz 4:2:0, with HDCP 2.2 and 1.4. The HDMI input and output, and the HDBaseT output support up to 7.1 channels of highest performance LPCM and HBR (High Bit Rate) lossless digital audio, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio.
Features
Automatic switching of the 4 video inputs
Manual switching of video inputs via front panel button, handheld IR remote, electrical IR, or RS-232
Split HDMI and HDBaseT Outputs feed local and remote displays simultaneously
Supports up to 340 MHz TMDS clock and 10.2 Gbps data throughput۬
VGA and DVI feature scaling up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (60 Hz) with picture adjustment capabilities
DVI input can be associated with the L/R Analog Audio Input or with audio embedded in the video
When used with optional EXT-UHDA-HBTL-RX HDBaseT Receiver, extends the HDMI output, outbound IR, and RS-232 over a single CAT-5e
Inputs
1x HDMI
1x DisplayPort
1x DVI
1x VGA
1x L/R Analog Audio
Outputs:
1x HDMI
1x HDBaseT
1x L/R Analog Audio
