Product Overview

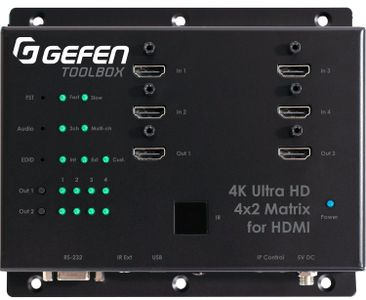

The Gefen GTB-HD4K2K-442-BLK ToolBox 4x2 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K or 1080p Full HD sources to be routed to up to two Ultra HD displays. Each Hi-Def source can be routed to either of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.
Video Support
Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920x1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.
Audio Support
Multi-channel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.
Routes four Ultra Hi-Def sources to two Ultra HD displays
Supports resolutions up to Ultra HD 4K (3840 x 2160 @ 60Hz 4:2:0 or 30Hz 4:4:4), 4K Cinema (DCI) @ 24 or 30Hz 4:4:4), and 1080p Full HD
HDMI 2.0 compliant
HDCP 1.4 compliant
Supports 12-bit Deep Color
3DTV pass-through
Lip Sync pass-through
Push button controls for Routing, FST Modes, Audio, and EDID management
FST Technology speeds up HDCP authentication process
Advanced EDID Management for rapid integration of sources and displays
Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™
Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
RS-232 Serial interface for remote control using a computer or automation control system
IP control via Telnet, UDP, and the built-in web server interface
IR remote control
Field-upgradeable firmware via Mini-USB and IP ports
Locking Power Supply
Surface-mountable
