Product Overview

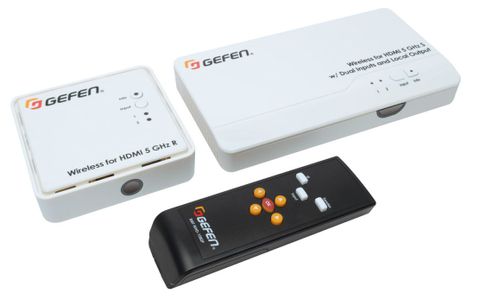

HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby® or DTS® formats are supported. This wireless system is comprised of a Sender and a Receiver unit. Both units can be attached to a standard ¼”-20 camera tripod mount, wall mounted, or be placed on a shelf. The small and low-profile Receiver unit includes a wired IR Extender module, and can be hidden away behind the display or inside an equipment cabinet if needed. The Sender features two HDMI inputs and an HDMI output for connection to a local display. The end-user can select between the two HDMI sources by using the included handheld IR remote or by pressing the Input button on the Sender or the Receiver unit. The included IR emitter array can be connected to the Sender unit and attached to the IR sensor windows of the two Hi-Def sources, allowing full control of the source unit from another room simply by pointing the IR remote of the source at the Receiver unit. This wireless extender system is ideal for high-definition AV extension in a conference room, classroom, auditorium, home theater, and multiroom AV installations that feature multiple sources and two displays. Up to eight Sender units can be accessed by a Receiver, one at a time, using its handheld remote control. The Wireless for HDMI 5 GHz LR Extender system can transmit through walls and does not require line-of-sight placement of its transceivers.
Wireless extension of HDMI up to 100 feet (30 meters)
Supports resolutions up to 1080p Full HD, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of Dolby® and DTS® formats
Transmits through obstacles - does not require line-of-sight
Long Range performance makes it ideal for multi-room use
IR Back Channel for source control with carrier frequency selector
HDMI Features Supported :CEC, 12-bit Deep Color, 3DTV pass-through, HDCP pass-through, Lip Sync
Uncompressed High Definition A/V from source to display
Less than 1 frame latency
AES 128 Encryption
Compatible with legacy DVI displays
Handheld IR remote for easy setup and operation
Firmware update via Mini-USB port using Gefen Syner-G™ software
WHDI 1.0, FCC Part 15, IC, and ETSI-compliant
Additional Sender units (EXT-WHD-1080P-LR-TX) available separately ***
Sender Unit
2 HDMI Inputs
Local HDMI "Mirrored" Output
IR Output port and included Emitter Array for source control
Ideal for use with 2 sources in a fixed home theater type installation
Flexible mounting options: ¼"-20 thread, wall mounting, shelf placement
Receiver Unit
IR Extender module included for hidden installations
Small and compact form factor - can be installed behind the TV
Flexible mounting options: ¼"-20 thread, wall mounting, shelf placement
