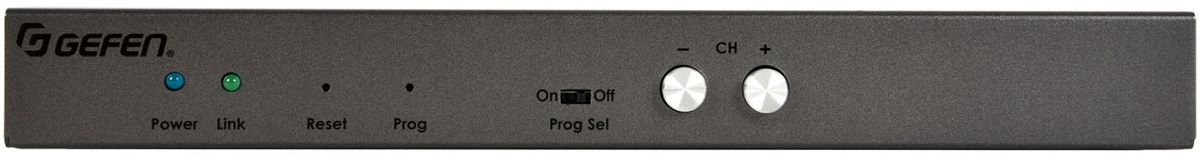

Gefen® Digital and Analog Audio over IP – Receiver Package

Product Overview

Audio input and output options include L/R Analog, Coaxial Digital, and Optical Digital. When using the digital inputs and outputs, 2-channel PCM and up to 5.1 channels of Bitstream can be distributed through the system. In addition to audio, RS-232 and 2-way IR can also be independently routed and distributed for source and amplifier control. The entire Gen 2.0 product line, including the audio models, feature backward-compatibility with our first-generation products.

Power-over-Ethernet allows the Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies.

Features

Extends digital and analog audio, RSZ-232, and IR, using a Gigabit Local Area Network

Independent audio, RS-232, and IR routing

Backward-compatible with first generation Gefen AV over IP products

Analog L/R, coaxial digital, and optical digital inputs and outputs

MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller

Enhanced API for added functionality with third-party control systems

Built-in web interface, Telnet, and UDP

Compatible with the Gefen Keyboard Switching Controller software, available for download at www.gefen.com

Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch

802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies

Two-port Gigabit Ethernet switch built into the Receiver unit

Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface

Locking power supply connectors
