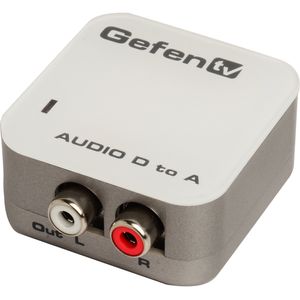

Gefen Digital Audio to Analog Adapter

Gefen

Model #:

GTV-DIGAUD-2-AAUD

Model #: GTV-DIGAUD-2-AAUD
401232
Gefen
$99,999.00

At a Glance

Product Dimensions .87"h x 1.65"w x 1.59"d

The Digital To Analog Audio converter box takes your coaxial/optical (S/PDIF or TOSLink) digital audio source and converts it to standard analog left/right audio, available for connection to an external device such as an amplifier or recording deck via standard RCA-style jacks. Now you can bridge your legacy sound system with digital sources such as DVD and CD players that don't have RCA-style analog outputs.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Converts S/PDIF or TOSLink digital audio signals to analog L/R audio

Digital interpolation filter and digital to analog converter (DAC)

Accepts uncompressed digital audio as input

Samples at 32, 44.1, 48 and 96 KHz

2-channel LPCM (Linear Pulse Code Modulation)

24-bit S/PDIF incoming bitstream on left and right channels

Compact and easy to install

Coaxial and Optical digital input ports

Right and Left RCA Stereo analog output ports

Useful Documents
Specification Sheet
Manual
Specifications

General Specs

Product Weight (lbs.).06
Depth (in.)1.59
Width (in.)1.65
Height (in.).87
Voltage5
Manufacturer Warranty2 Year
Color Finish NameWhite

General

Distortion<0.001% @ 1kHz at 2V RMS
SNR> 90dB (20Hz - 20kHz A Weighting)
ChassisWhite plastic chassis
Operating Temperature0-70 deg. C
Power Supply5v DC / 5W (US/EU standards, CE/FCC/UL certified)
Dimensions1.8" W x 1.8" H x 0.9" D
Shipping Weight1 lb.

In The Box

GefenTV Digital To Analog Audio Adapter (GTV-DIGAUD-2-AAUD)(1)
3 ft. Optical Cable (CAB-TLINK-3MM-O)(1)
5V DC Power Supply (EXT-PS51AIP-O)(1)
Quick-Start Guide (QSG-GTV-DIGAUD-2-AAUD)(1)
