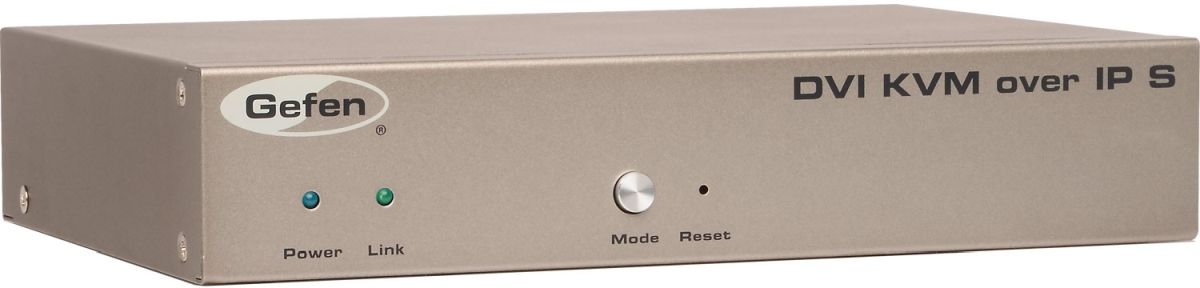

Gefen® DVI KVM over IP – Sender Package

Product Overview

The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual crosspoint matrix of just over 65,000 Sender and Receiver units total, depending on the network bandwidth and number of ports on the network switch (see Note). Any combination of HDMI, DVI, and VGA Senders and Receivers can be used. Each Receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1.

Features

Extends DVI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network

Any combination of HDMI, DVI, and VGA Senders and Receivers can be used together to create a "Virtual Matrix"

Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)

Supports 2 USB devices at Receiver side, with 500mA current capability per port, USB 2.0 data rates up to 480 Mbps, and backward-compatibility with USB 1.1

Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software

Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch

Three-port Ethernet switch built into the Receiver unit

Switch/USB button facilitates scrolling between multiple Senders and accessing a USB host computer from multiple Receivers

Mode button on Sender for sharpness or motion optimization of image
