Product Dimensions 1"h x 4.3"w x 3.4"d

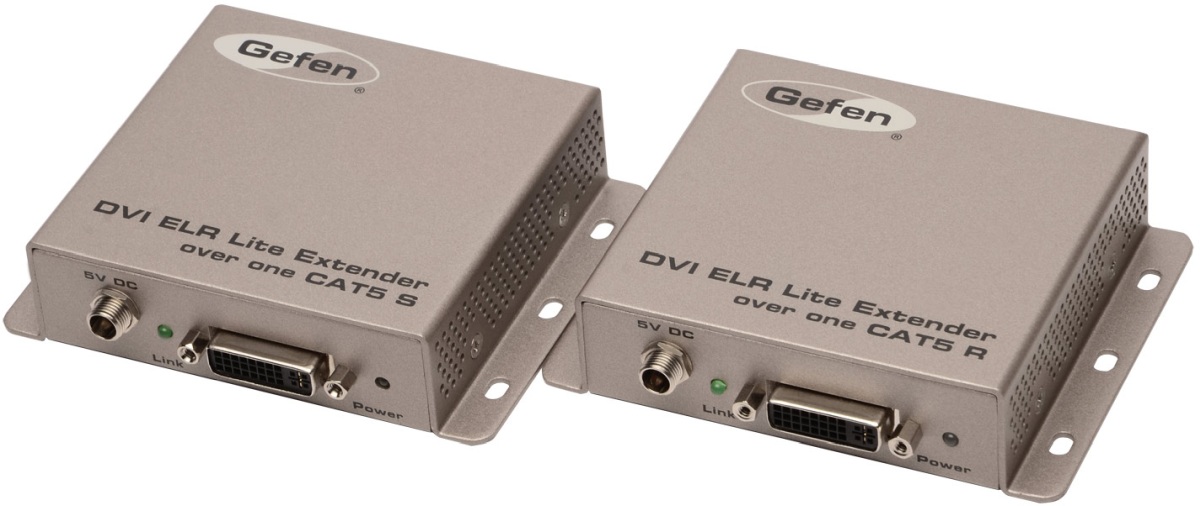

The DVI Short Range Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e.Read More
This product is HDCP compliant. It uses Gefen’s ELR Lite implementation of HDBaseT® Lite technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.
Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
Supports resolutions up to 1920 x 1200 (WUXGA)
EDID management for rapid integration of source and display
HDCP compliant
Locking power supplies
Surface-mountable
General Specs | |
| Color | Beige |
| Depth (in.) | 3.4 |
| Width (in.) | 4.3 |
| Height (in.) | 1 |
| Voltage | 5 |
| Wattage | 10 |
| Manufacturer Warranty | 2 Year |
| Maximum Operating Range | 230 |
| Color Finish Name | Beige |
