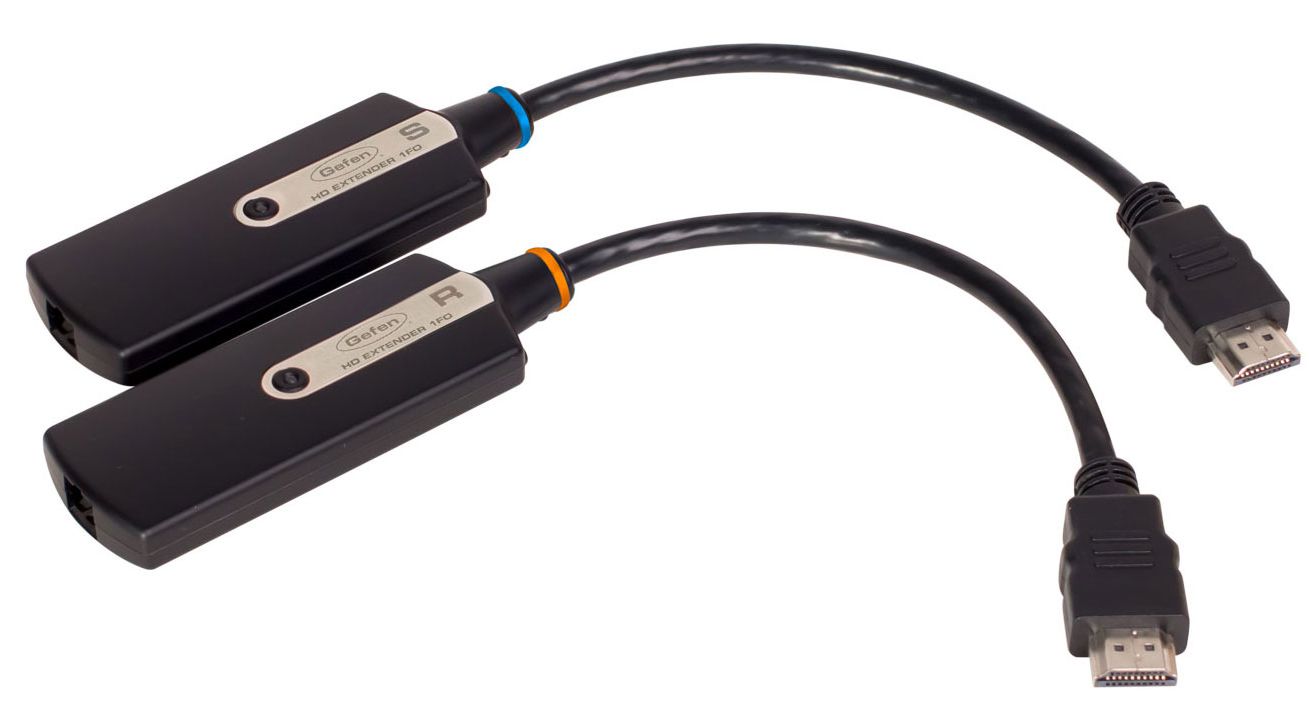

Gefen Fiber Optic Extender for HDMI (Pigtail Modules)

Gefen

Model #:

EXT-HD-CP-FM10

Model #: EXT-HD-CP-FM10
399487
Gefen
$99,999.00

At a Glance

TheGefen FM10 HDMI Fiber Optic Extender with HDCP support extends HDMI up to 3300 feet (1000 meters) using single-strand 50/125 µm multimode (OM2/OM3) SC-terminated fiber optic cable. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules. The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend HDMI.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Pigtail module HDMI extension using a single-strand multimode fiber optic cable with HDCP support

Supports resolutions up 1080p Full HD

Supports HD lossless audio: LPCM 7.1 audio, Dolby® Digital Plus, Dolby® TrueHD, and DTS-HD® Master Audio™

Extends HDMI up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable

Supports resolutions up 1080p Full HD

Supports HD lossless audio: LPCM 7.1 audio, Dolby® Digital Plus, Dolby® TrueHD, and DTS-HD® Master Audio™

Fiber optic transmission eliminates electromagnetic interference (EMI)

Pigtail design relieves stress and clutter on the source and display connector panels

3DTV pass-through

DDC bidirectional support

HDCP pass-through

Supports Deep Color

Compact Sender and Receiver modules provide a clean, easy installation

FCC and CE compliant for EMI/RFI emission

Specifications

General Specs

Product Weight (lbs.)1.1
Width (in.)7.25
Height (in.)1.75
Color Finish NameBlack
Manufacturer Warranty2 Year

Shipping Information

Length13.65 (Inches)
Width7.25 (Inches)
Height1.75 (Inches)
Weight1.1 (Lbs)

General

Maximum Pixel Clock225 MHz
Video Input Connector (Sender)(1) HDMI Type-A, 19-pin, male
Video Output Connector (Receiver)(1) HDMI Type-A, 19-pin, male
Link Connector (Sender/Receiver)(1) Type SC fiber (50 /125°m)
Power Supply (Sender)5V DC (not needed for most applications)
Power Supply (Receiver)5V DC
Power Consumption (Receiver)1.5W (max.)
Operating Temperature+32 to +122
Storage Temperature-4 to +158
Relative Humidity10 to 80%
Dimensions (W x H x D)1.18" x 0.47" x 10.71" (29.97mm x 11.93mm x 272.03mm)
Shipping Weight1 lb (0.45 kg)

In The Box

Fiber Optic for HDMI (Pigtail Modules) (Sender Pigtail) (EXT-HD-CP-FM10S)(1)
Fiber Optic for HDMI (Pigtail Modules) (Receiver Pigtail) (EXT-HD-CP-FM10R)(1)
5V DC Power Supply (EXT-PS52AIP-1.3 or or EXT-PS52AIP-1.3-6 or EXT-PS52AIP-1.3-6-AL)(1)
Quick-Start Guide (QSG-HD-CP-FM10)(1)
