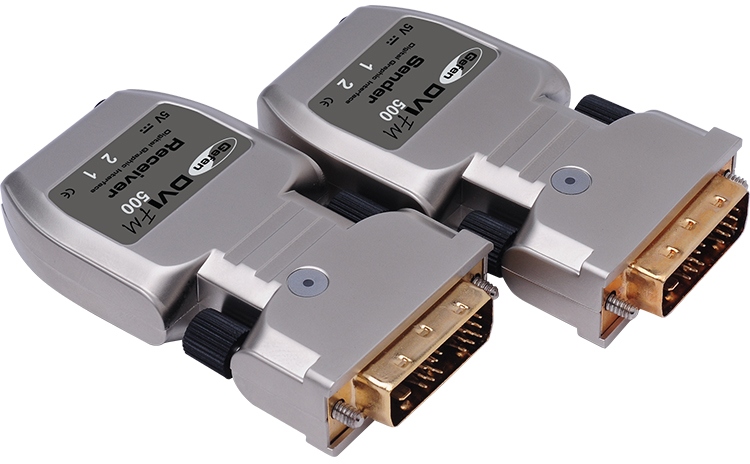

Gefen® FM500 DVI Fiber Optic Extender

Gefen

Model #:

EXT-DVI-FM500

At a Glance

Product Dimensions .5"h x 1.5"w x 2.5"d

The Gefen FM500 DVI Fiber Optic Extender allows DVI signal to be extended up to 5000 feet (1.5 km) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Two strands of LC-terminated fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with switchers and matrixes.

Features

Extends DVI up to 5,000 feet (1500 meters) using single-mode(8/125 um or 9/125 um) fiber cable

Extends DVI up to 1,500 feet (450 meters) using multi-mode (50 um or 62.5 um) fiber cable

Supports resolutions up to 1920 x 1200

Supports DDWG standard for DVI-compliant monitors

EDID Programming feature enables quick and correct sync of source to display

Fully supports DVI 1.0 and DDC2B via virtual DDC

Supports both single-mode and multi-mode fiber optic cable types

Fiber cable provides immunity from electromagnetic interference (EMI)

Useful Documents
User Manual
Specification Sheet
Specifications

General Specs

ColorGray
Depth (in.)2.5
Width (in.)1.5
Height (in.).5
Voltage5
Wattage2.5
Manufacturer Warranty2 Year
Maximum Operating Range5000
Color Finish NameGray

WarningProposition 65 Warning for California Residents
