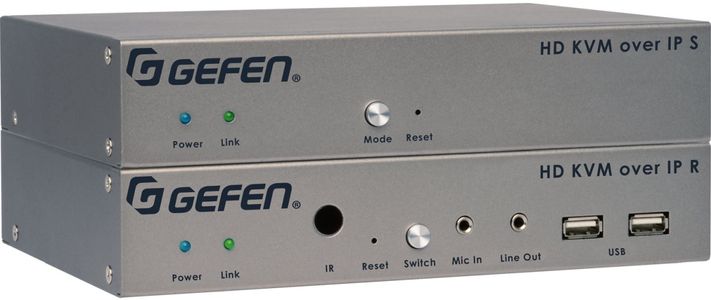

Gefen® HD KVM Over IP – Receiver Package

Product Overview

Multiple Receiver units can simultaneously connect to any Sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual crosspoint matrix of just over 65,000 Sender and Receiver units total, depending on the network bandwidth and number of ports on the network switch. When using HDCP-encrypted content, only HDMI Senders and Receiver units can accept and display the content. Each Receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. Each Receiver unit provides two USB ports with up to 500mA current draw per connector, providing access to keyboard, mouse, and other compatible devices.

Features

Extends HDMI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network

Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)

Supported HDMI Features: HDCP, Deep Color, LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD® Master Audio, Lip-Sync pass-through

Built-in web interface facilitates intuitive set up and operation

Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software (available for download at www.gefen.com)

Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch

USB 2.0 data rates up to 480 Mbps and backward-compatibility with USB 1.1

Three-port Gigabit Ethernet switch built into the Receiver unit

Mode button on Sender for sharpness or motion optimization of image

Field-upgradable firmware via web server interface

Locking power supply connectors

1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U

Surface mounting brackets included
