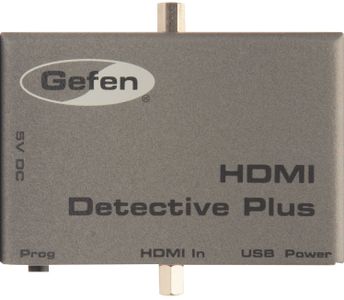

Gefen HDMI Detective Plus

Product Overview

High Definition displays with HDMI inputs use EDID (Extended Display Identification Data) to ensure that a connected Hi-Def source sends compatible audio and video signals. In some scenarios, this data can be lost, resulting in an incorrect signal or complete loss of audio and/or video. The Gefen HDMI EDID Detective Plus has been designed specifically to address this issue by recording the display EDID date and making it available to the Hi-Def source reliably and on a continuous basis. With DDC re-clocking technology, the reliability of HDCP handshaking is improved, ensuring that the Hi-Def source always receives the correct EDID. Using the Gefen Syner-G PC software or terminal emulation via USB, the installer can also manipulate/modify the EDID data to meet installation-specific requirements and resolve system-specific compatibility issues. The HDMI EDID Detective Plus has been designed for quick and easy programming and installation.

Supports resolutions up to 1080p Full HD, and 1920 x 1200 (WUXGA)

HDMI Features Supported: HDCP, 12-bit Deep Color, LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus,and DTS-HD® Master Audio™, 3DTV pass-through, Lip-Sync pass-through, CEC pass-through

USB port for advanced programming of features such as EDID management

Configurable EDID using Gefen Syner-G™ software suite, downloadable from Gefen website.

DDC Re-clocking

Records the EDID from a display

6 pre-programmed EDID profiles

6 user-programmable EDID banks for copying/uploading EDIDs

Selectable HDCP pass-through

Field updatable firmware via USB port

Compact and portable
