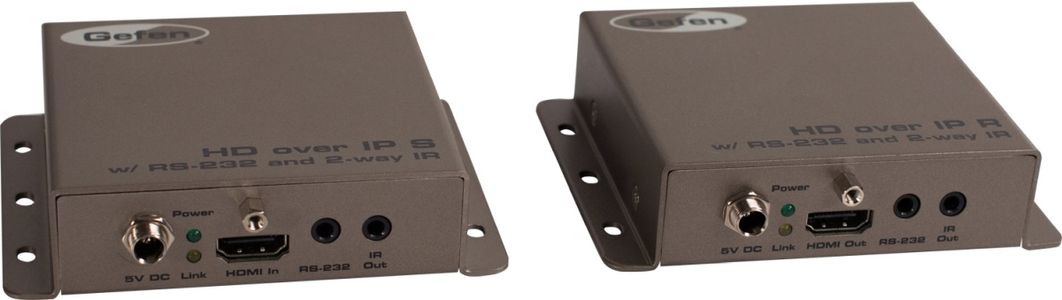

Gefen® HDMI over IP with RS-232 and Bi-Directional IR – Sender Package

Product Overview

The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual crosspoint matrix of just over 65,000 Sender and Receiver units total, depending on the network bandwidth and number of ports on the network switch.

IR control can be extended from Sender to Receiver and from Receiver to Sender, allowing the control of source units and displays remotely. The IR input ports on Sender and Receiver units can accommodate both the Gefen powered IR extender EXT-RMT-EXTIRN and electrical IR from automation control devices. RS-232 serial control can also be extended between each Sender and Receiver unit. The built-in web server interface makes control, set-up, and configuration simple and intuitive. When using multiple Senders and Receivers as a "Virtual Matrix", you can connect to any of the Senders within the network by accessing the web interface of each Receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching Controller software (available for download at www.gefen.com). The Gefen HD over IP extender is the perfect solution for large scale remote HD content access and digital signage applications.

Features

Extends HDMI, RS-232, and bi-directional IR over IP, using a Gigabit Local Network

Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)

Supported HDMI Features: HDCP, Deep Color, LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD Master Audio, Lip-Sync pass-through

Built-in web interface facilitates intuitive set up and operation

Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching

Controller software (available for download at www.gefen.com)

Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch

Mode Selector function in web interface for sharpness or motion optimization of image

Versatile IR In/Ext ports work with powered Gefen IR extenders and electrical IR from automation control devices

Field-upgradable firmware via web server interface

Locking power supply connectors
