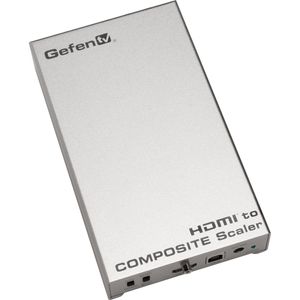

Gefen HDMI to Composite/S-Video Scaler

Product Overview

Convert any Hi-Def source to standard definition NTSC/PAL format with scaling. The HDMI to analog video scaler supports resolutions up to 1080p Full HD video and scaled outputs in Composite and S Video, while maintaining the original aspect ratio for optimal viewing. The coax S/PDIF digital audio and left/right analog audio outputs allow the audio extracted from the HDMI signal to be sent to any AV Receiver or audio amplifier. Underscan/Overscan and NTSC/PAL switches help assure compatibility with a variety of analog televisions. This scaler also features a USB port for firmware upgrades.

Converts and scales HDMI to Composite/S-Video at 480i/60 or 576i/50

De-embeds audio from HDMI and outputs it as digital and analog audio

Accepts HDMI video at resolutions of up to 1080p Full HD

Supports both NTSC and PAL formats

Underscan/Overscan Switch helps optimize image size on old analog TV screens without over-cropping or visible black borders

Field upgradable firmware via USB port

Supported input resolutions: 480i@60Hz, 576i@50Hz, 480p@60Hz, 576p@50/Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1600x1200@60Hz
