Product Dimensions 1"h x 9.5"w x 4"d
Converts Hi-Def source using HDMI with HDCP and outputs to an HDTV display with up to 8 channels of LPCM audioRead More

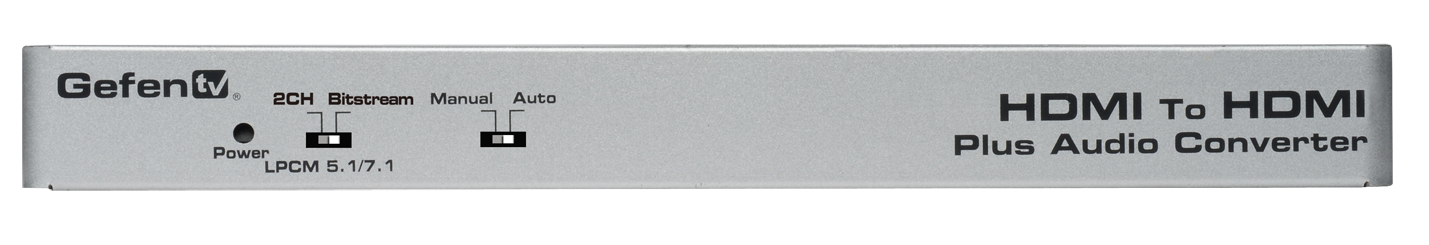

The GefenTV HDMI to HDMI Audio Converter is a product that takes a Hi-Def source using HDMI and outputs it to an HDTV display using HDMI and, in addition, up to 8 channels of LPCM audio output through eight RCA connectors. Bitstream is output via an Optical digital connector.
Additional features include switchable audio selections between auto mode and manual mode affording further selection between two-channel audio only, multi-channel bitstream, and 7.1 LPCM audio.
Switchable selection between Auto mode and Manual mode
Bitstream Audio via Optical Toslink and LPCM 7.1 via 8 RCA connectors
Locking power supply
General Specs | |
| Depth (in.) | 4 |
| Width (in.) | 9.5 |
| Height (in.) | 1 |
| Voltage | 5 |
| Wattage | 13 |
| HDMI Outputs | 1 |
| HDMI Inputs | 1 |
| Color Finish Name | Gray |
| Manufacturer Warranty | 2 Year |
General | |
| Maximum Pixel Clock | 225 MHz |
| Maximum Resolutions | 1080p, 1920 x 1200 |
| HDMI Input | 19-pin HDMI connector |
| HDMI Output | 19-pin HDMI connector |
| Digital Audio Output | TOSLINK |
| Analog Audio Outputs | 8 x RCA |
| Power Supply | 5V / 2.6A DC, locking |
| Power Consumption | 13 Watts (max) |
| Operating Temperature | 0 - 40 °C |
In The Box | |
| HDMI to HDMI Plus Audio Converter | (1) |
| 6 ft HDMI Cable | (1) |
| 5V DC Locking Power Supply | (1) |
| Quick Start Guide | (1) |
