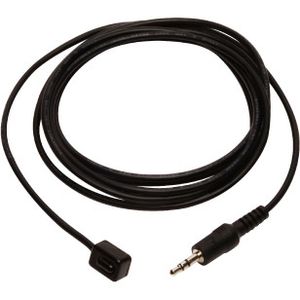

Gefen IR Extender Module


Model #:

EXT-RMT-EXTIRN

Model #: EXT-RMT-EXTIRN
399882
Gefen
$99,999.00

At a Glance

Extend the IR sensor on compatible Gefen products up to 6 feet (1.8 meters) away. Create a sleek and custom appearance and add installation flexibility for your A/V system setup by concealing the Gefen product that needs to accept IR, and installing the super-small-footprint-module in a location within the line of sight of the IR remote control. When used with Gefen Extenders, the Gefen IR Extender Module can pass through virtually any IR signal between 30kHz to 60kHz and output it on the Receiver side with its carrier frequency intact.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Extends the IR sensor up to 6 feet (1.8 meters)

Adds relocation flexibility during installation of compatible products

Small footprint IR sensor module easily blends with its surroundings

Soft and flexible black cable fits in narrow spaces unobtrusively

Self-adhesive backing for the IR sensor module facilitates installation

Useful Documents
Specifications

General Specs

Product Weight (lbs.)0.1
Height (in.)1
Color Finish NameBlack
Manufacturer Warranty2 Year

Shipping Information

Length7.25 (Inches)
Width3.75 (Inches)
Height1 (Inches)
Weight0.1 (Lbs)

General

Connector(1) 3.5mm mini-stereo phone plug
Cable Length6 feet (1.8 meters)
IR Carrier Pass-Through Frequency30 kHz to 60 kHz
Sensor Dimensions (W x H x D)0.32" x 0.28" x 0.51" (8mm x 7mm x 13mm)
Shipping Weight0.1 lbs (0.05 kg)
ColorBlack

In The Box

IR Extender Module(1)
