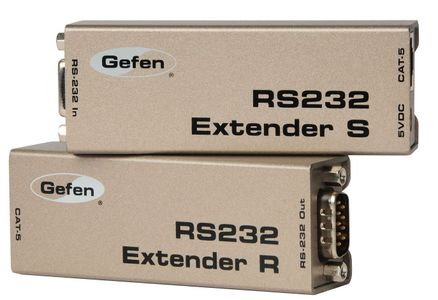

Gefen RS232 Extender

Gefen

Model #:

EXT-RS232

Model #: EXT-RS232
399893
Gefen
$99,999.00

At a Glance

Product Dimensions 1.2"h x 3.8"w x 1.4"d

Now you can extend your RS-232 peripherals to a remote location 1000 feet (300 meters) away. Control your favorite Gefen products that use RS-232 or any other serial control devices that use RS-232. All 9-pins are perfectly reproduced from one end to the other.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Extends any RS-232 compliant device up to 1000 feet (300 meters) from the computer

Supports the full 9-pin RS-232 standard with a maximum data transfer rate of 115,200 baud

Perfect for digital signage applications

Only one CAT-5e cable required for extension

Power only required on Sender unit

Useful Documents
Specification Sheet
Manual
Specifications

General Specs

Depth (in.)1.4
Width (in.)3.8
Height (in.)1.2
Manufacturer Warranty2 Year

General

RS-232 Input ConnectorDB-9 female
RS-232 Output ConnectorDB-9 male
Link ConnectorRJ-45 Shielded, Conforms to the full 9-pin RS-232 standard
Maximum Data Transfer Rate115,200 baud
Operating Temperature Range+5 to +45 deg. Celsius
Operating Humidity Range5 to 65% RHL, non-condensing
Storage Temperature Range-20 to +70 deg. Celsius
Storage Humidity Range5 to 95% RHL, non-condensing
Power Supply5V DC
Power Consumption5W (max)
Dimensions3.8" W x 1.2" H x 1.4" D
Shipping Weight2 lbs.

In The Box

RS232 Extender (Sender Unit) (EXT-RS232S)(1)
RS232 Extender (Receiver Unit) (EXT-RS232R)(1)
6 ft. DB-9 Cable (CAB-DB9-6MF)(1)
5V DC Power Supply (EXT-PS526AIPN or EXT-PS526AIPN -6)(1)
Quick-Start Guide (QSG-RS232)(1)
