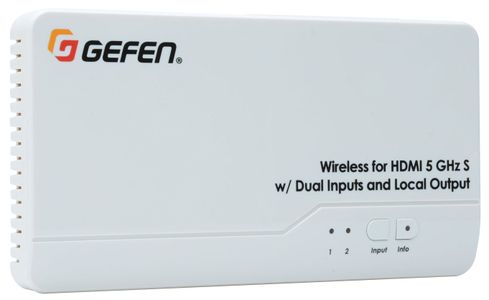

Gefen Sender Unit for Long Range 5GHz HDMI Wireless Extender

Product Overview

The Wireless for HDMI 5 GHz LR (Long Range) Extender system sends high definition audio and video to any HDTV display up to 100 feet (30 meters). It extends HDCP -compliant HDMI AV content from computers, game consoles, set-top boxes, Blu-ray players, and other AV sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1 channels of LPCM digital audio, and 5.1 channels of Dolby® or DTS® formats are supported.

This wireless system is comprised of a Sender and a Receiver unit. Both units can be attached to a standard ¼"-20 camera tripod mount, wall mounted, or be placed on a shelf. The small and low-profile Receiver unit includes a wired IR Extender module, and can be hidden away behind the display or inside an equipment cabinet if needed. The Sender features two HDMI inputs and an HDMI output for connection to a local display. The end-user can select between the two HDMI sources by using the included handheld IR remote or by pressing the Input button on the Sender or the Receiver unit. The included IR emitter array can be connected to the Sender unit and attached to the IR sensor windows of the two Hi-Def sources, allowing full control of the source unit from another room simply by pointing the IR remote of the source at the Receiver unit.

This wireless extender system is ideal for high-definition AV extension in a conference room, classroom, auditorium, home theater, and multiform AV installations that feature multiple sources and two displays. Up to eight Sender units can be accessed by a Receiver, one at a time, using its handheld remote control. The Wireless for HDMI 5 GHz LR Extender system can transmit through walls and does not require line-of-sight placement of its transceivers.

Wireless extension of HDMI up to 100 feet (30 meters)

Supports resolutions up to 1080p Full HD, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of Dolby® and DTS® formats

Transmits through obstacles - does not require line-of-sight

Long Range performance makes it ideal for multi-room use

Uncompressed High Definition A/V from source to display

Less than 1 frame latency

AES 128 Encryption

AES 128 Encryption

Handheld IR remote for easy setup and operation

Firmware update via Mini-USB port using Gefen Syner-G™ software

WHDI 1.0, FCC Part 15, IC, and ETSI-compliant

Additional Sender units (EXT-WHD-1080P-LR-TX) available separately

IR Back Channel for source control with carrier frequency selector

HDMI Features Supported

CEC

12-bit Deep Color

3DTV pass-through

HDCP pass-through

Lip Sync

Sender Unit

2 HDMI Inputs

Local HDMI "Mirrored" Output

IR Output port and included Emitter Array for source control

Ideal for use with 2 sources in a fixed home theater type installation

Flexible mounting options: ¼"-20 thread, wall mounting, shelf placement

Receiver Unit

IR Extender module included for hidden installations

Small and compact form factor - can be installed behind the TV

Flexible mounting options: ¼"-20 thread, wall mounting, shelf placement
