Product Dimensions 1.8"h x 3.7"w x 1.4"d

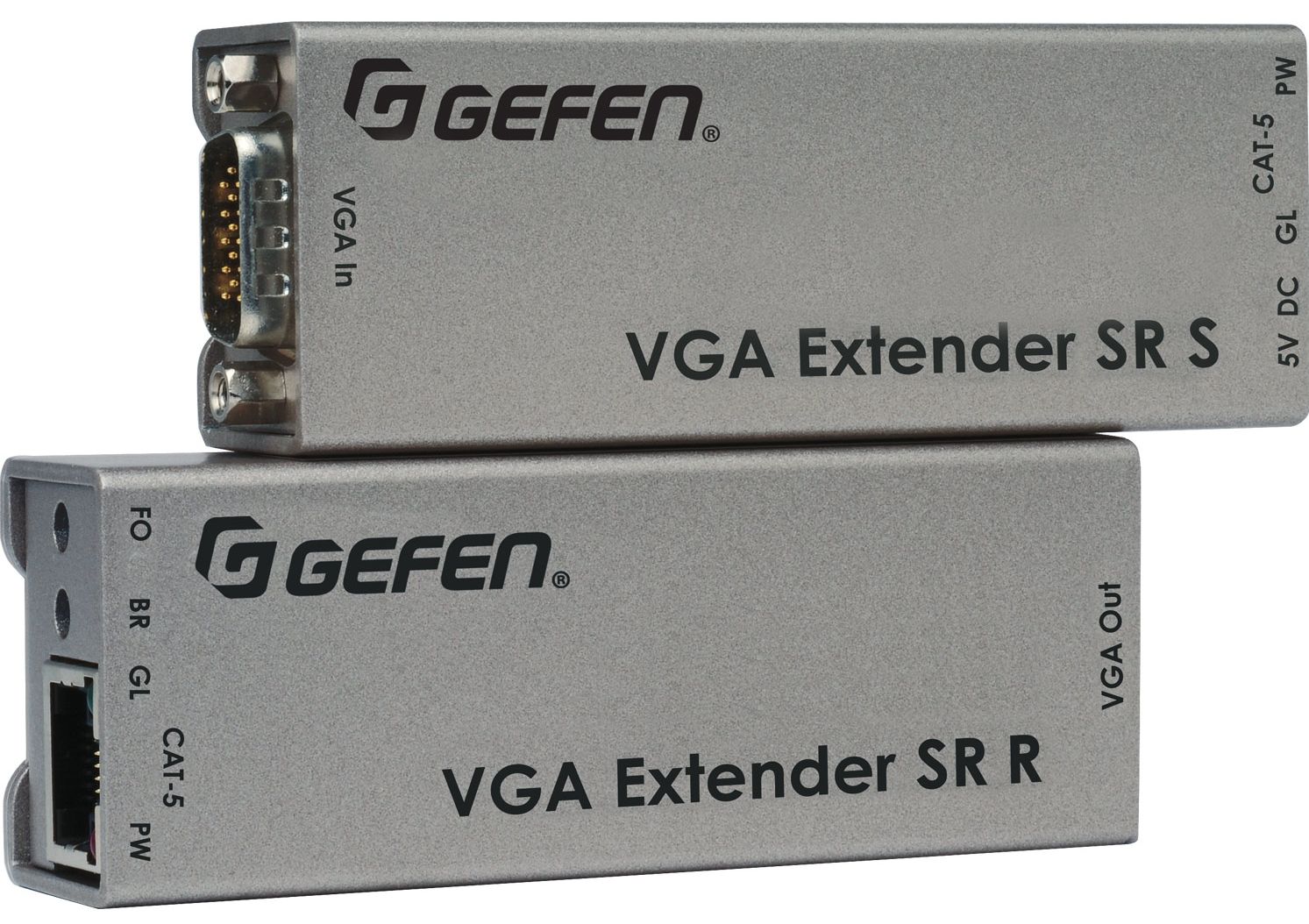

VGA Extender SRN extends any VGA Monitor up to 150 feet using a single CAT-5 CableRead More
This product allows users to extend video signals far beyond the A/V rack, up to 150 feet or 45 meters. Industry-standard CAT-5e cable is used for the extension.
Extends any VGA or high definition component display up to 150 feet (45 meters)
One CAT-5e cable for extension
Supports resolutions up to 1080p, 2K, and 1920 x 1200
General Specs | |
| Depth (in.) | 1.4 |
| Width (in.) | 3.7 |
| Height (in.) | 1.8 |
| Shipping Depth (in.) | 9.31 |
| Shipping Width (in.) | 6.12 |
| Shipping Height (in.) | 3 |
| Color Finish Name | Gray |
| Manufacturer Warranty | 2 Year |
General | |
| Video Amplifier Bandwidth | 350 MHz |
| Input Video Signal | 1.2 V p-p |
| Input Sync Signal | 5 V p-p (TTL) |
| Horizontal Frequency Range | 15-70 KHz |
| Vertical Frequency Range | 30 - 170 Hz |
| Video In | HD-15 male |
| Video Out | HD-15 female |
| Link Connector | RJ-45 Shielded |
| Power Supply | 5V DC |
| Power Consumption | 5 Watts (max.) per power supply |
| Dimensions | 3.7" W x 1.8" H x 1.4" D each module |
| Shipping Weight | 2 lbs. |
In The Box | |
| VGA Extender SRN Sender Unit | (1) |
| VGA Extender SRN Receiver Unit | (1) |
| 6 foot VGA cable (M-F) | (1) |
| 5V DC power supply (EXT-PS51AIP or EXT-PS51AIP-6) | (1) |
| Quick-Start Guide | (1) |
