Gefen Wireless Extender for HDMI Short Range

Product Overview

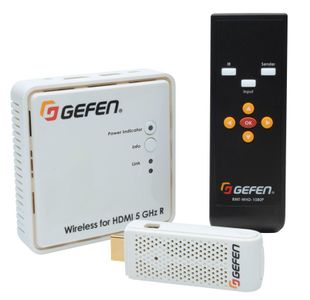

The Wireless for HDMI 5 GHz SR (Short Range) Extender system sends high definition audio and video to any HDTV screen up to 33 feet (10 meters). It extends HDCPcompliant HDMI AV content from computers, game consoles, set-top boxes, Blu-ray players, and other AV sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby® or DTS® formats are supported. This wireless system is comprised of a Sender and a Receiver unit. The small “Stick” Sender connects directly to an HDMI port, and can be powered either from a powered USB port or from the included power supply. It is ideal for high-definition AV extension in a conference room or home theater installation that requires occasional connection of portable devices such as a presentation laptop computer or a video camera. The Receiver unit connects to a display with an HDMI input, using the supplied HDMI cable. It can be attached to a standard ¼”-20 camera tripod mount, wall mounted using two keyhole slots, or be placed on a shelf. Thanks to its small-size, low-profile, and the included wired IR Extender module, it can be hidden away behind the display or inside an equipment cabinet if needed. Up to eight Sender units can be accessed by the Receiver, one at a time, using its handheld remote control. While the Wireless for HDMI 5 GHz SR Extender system can transmit through obstacles and does not require line-of-sight placement of its transceivers, it is optimized for shorter distances that are typical of in-room use. For longer range extension, use the Gefen EXT-WHD-1080P-LR.

Wireless extension of HDMI up to 33 feet (10 meters) **

Supports resolutions up to 1080p Full HD, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of Dolby® and DTS® formats

Transmits through obstacles - does not require line-of-sight

Uncompressed High Definition A/V from source to display

Less than 1 frame latency

AES 128 Encryption

Compatible with legacy DVI displays

HDMI Features Supported

3DTV pass-through

HDCP pass-through

Lip Sync

Sender unit:

Small "Stick" connects directly to HDMI port

Powered from a USB port or included power supply

Ideal for temporary connection of mobile devices, laptops, cameras, etc.

Receiver unit:

IR Extender module included for hidden installations

Small and compact form factor - can be installed behind the TV
