Technology Interiors
317-284-1084

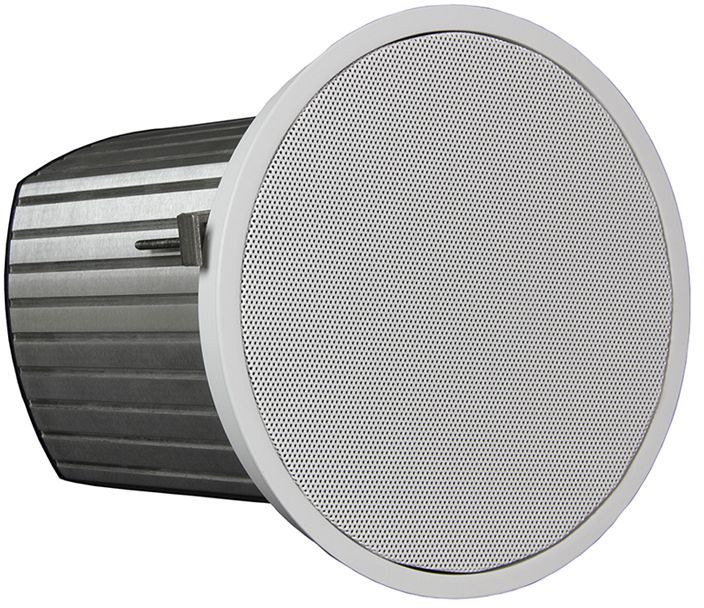

The FXC620R ceiling speaker features a traditional 3/8” mounting flange, but by using a thin aluminum material instead of plastic, the speaker provides a flush mounted look - a preferred visual for many clients. The FXC620R, small-format loudspeakers feature a coaxially mounted 0.75” aluminum dome tweeter design over a proprietary high-excursion 6.5” woofer.
Width | 9.15 |
---|
Sold As | Each |
---|
Tweeter Composition | Aluminum |
---|---|
Woofer Composition | Aluminum Cone |
Sensitivity | 90dB 2.83V/1m |
---|---|
Speaker Type | In-Ceiling Speaker |
Color Finish Name | White |
---|---|
RMS Power Handling (Watts) | 150 |
Color | White |
Impedance | 4 Ohms |
Maximum Power Handling (Watts) | 150W |
Number of Speakers | 1 |
Speaker Type | In-Ceiling Speakers |
Depth (in.) | 6 |
Height (in.) | 9.15 |
Woofer Size | 6.5" |
The FXC620R ceiling speaker features a traditional 3/8” mounting flange, but by using a thin aluminum material instead of plastic, the speaker provides a flush mounted look - a preferred visual for many clients. The FXC620R, small-format loudspeakers feature a coaxially mounted 0.75” aluminum dome tweeter design over a proprietary high-excursion 6.5” woofer. The FXC line was inspired by the successful SXC in-ceiling speakers, and intended for smaller spaces like kitchens, bathrooms and hallways where a James SA Series speaker is not needed. These speakers are enhanced when paired with a James subwoofer such as the QXC10S or QXC8S. All woofers are James designed with aluminum cones and Santoprene surrounds to allow marine use while maintaining the highest quality sound. The enclosure is constructed with aircraft grade 5052 aluminum and includes a round white paintable aluminum grille. Installation could not be easier for either retro-fit or new construction projects.
Frequency Response: 70Hz-20kHz +/-3dB
Nominal Impedance: 4 ohms
Sensitivity: 90dB 2.83V/1m
Cutout: ∅8.500" (215.90 mm) / 8.5" x 8.5"
Recommended Power Range: 25 - 150W
Woofer: (1) 6.5" (165mm) Aluminum
Tweeter: (1) 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum
Finishes : White Paintable Grille
Height: 9.150 in (232.41 mm)
Width: 9.150 in (232.41 mm)
Depth: 6 in (152.40 mm)
Preconstruction Board (PCB): FXC620R PB
Flush Mount Preconstruction Board (PCBF): FXC620R PBF
Tweeter Composition: | Aluminum |
Woofer Composition: | Aluminum Cone |
Width: | 9.15 |
Sold As: | Each |
Sensitivity: | 90dB 2.83V/1m |
Speaker Type: | In-Ceiling Speaker |
Color Finish Name | White |
RMS Power Handling (Watts) | 150 |
Color | White |
Impedance | 4 Ohms |
Maximum Power Handling (Watts) | 150W |
Number of Speakers | 1 |
Speaker Type | In-Ceiling Speakers |
Depth (in.) | 6 |
Height (in.) | 9.15 |
Woofer Size | 6.5" |
