Product Overview

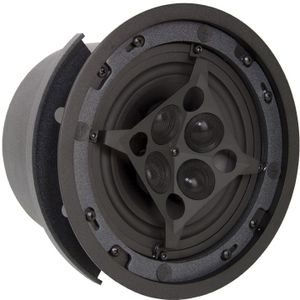

The QXC Series ceiling loudspeakers from James include performance that is second to none, and introduce a new low-profile exterior grille for subtle visual design. All woofers are James designed with aluminum cones and Santoprene™ surrounds to allow marine use while maintaining the highest quality sound. A James first, the Quad-Tweeter Array, features 4 aluminum 0.75” (19 mm) dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion. All enclosures are constructed with aircraft grade 5052 aluminum and include white paintable aluminum grilles and use the new James marine rated magnetic grille fasteners.
Perfect for any in-ceiling application where a James SA Series speaker is not necessary, installation could not be easier for either retro-fit or new construction projects. The QXC series uses a unique 3-piece installation method employing a lightweight frame, independent speaker body, and a border-less aluminum grille that protrudes less than 3/16” (5 mm) from the wall which can be painted based on the application - or completely flush with the addition of a pre-construction board. Choose from a square or round grille.
Specifications
Frequency Response: 65Hz-24kHz +/-3dB
Nominal Impedance: 8 ohms
Sensitivity: 92dB 2.83V/1m
Cutout: ∅8.268" (210.0 mm)
Recommended Power Range: 50 - 150W
Woofer: 6.5" (152mm) Aluminum
Tweeter: (4) 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum
Finishes : White Paintable Grille
Width: 9.14 in (232.16 mm)
Depth: 6 in (152.40 mm)
Grille Height: 9.14 in (232.16 mm)
Grille Width: 9.14 in (232.16 mm)
Net Weight: 6 lbs (2.72 kg)
Preconstruction Board (PCB): QXC620PB
Flush Mount Preconstruction Board (PCBF): QXC620R-PBF/QXC620S-PBF
