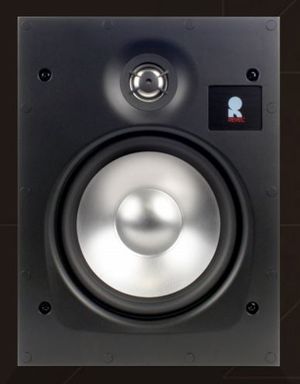

Revel® Architectural Series 6.5" In-Wall Loudspeaker

At a Glance

Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Proposition 65 Warning for California Residents

Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

Long-throw woofers with rubber surrounds provide high output with low distortion.

1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

High-order crossover network delivers accurate timbre reproduction.

Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV.

Dimensions

Mounting depth: 3.5” (8.8 cm)

Cutout dimensions (H x W): 9.8” x 7.3” (24.9 cm x 18.5 cm)

Grille finished dimension (H x W): 10.8” x 8.3” (27.3 cm x 21.1 cm)
