Russound® 126 Watt Impedance Matching Volume Control

Russound

Model #:

ALT-126R

Model #: ALT-126R
187119
Russound
$99,999.00

At a Glance

The ALT-126R is a premium wall-mounted volume control designed to allow easy, intuitive control of the volume of any audio system from single-room installations to whole-house distributed audio systems. Its high quality autoformers and other components are designed to attenuate the audio, without adding extra artifacts or taking away from the listening experience in any way.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

The impedance matching design allows multiple speakers to be connected to the same amplifier without compromising the system design. The UL/CSA certification and limited lifetime warranty bring the peace of mind that demanding customers desire in their installed audio systems.

Easy access impedance switch behind front plate

126W peak, 42W RMS continuous

Selects 12 steps including off

Accepts up to 12AWG cable

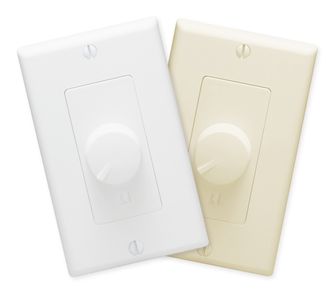

Includes both white and light almond plates and knobs

Lifetime warranty

Useful Documents
Specification Sheet
Manual
Specifications

General Specs

Connector Type4-Pole Screw Down
Connection Type4-Pole Screw Down

General

Volume ControlYes
Sold AsSet
ColorWhite; Light Almond
Shipping Dimensions7.0" (W) x 3.0" (H) x 6.0" (D) / (17.8 x 7.6 x 15.2 cm)
Shipping Weight0.0 lbs (0.0 kg)
Frequency Response20Hz - 20kHz, +/-1.0/-0.5 dB at rated power
Impedance4 ohms minimum
Impedance Matching TypeAutoformer based
Max Wire Size12 AWG (2.4 mm)
Power Handling126W max; 42W RMS continuous (per channel)
Speaker Connection(s)4-pole screw down accepts up to 12 gauge cable
Volume Control12 steps including Off; total attenuation 48 dB
WarningProposition 65 Warning for California Residents
