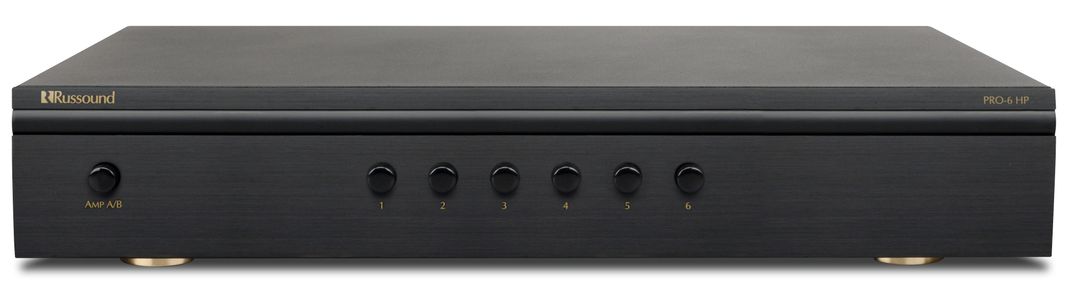

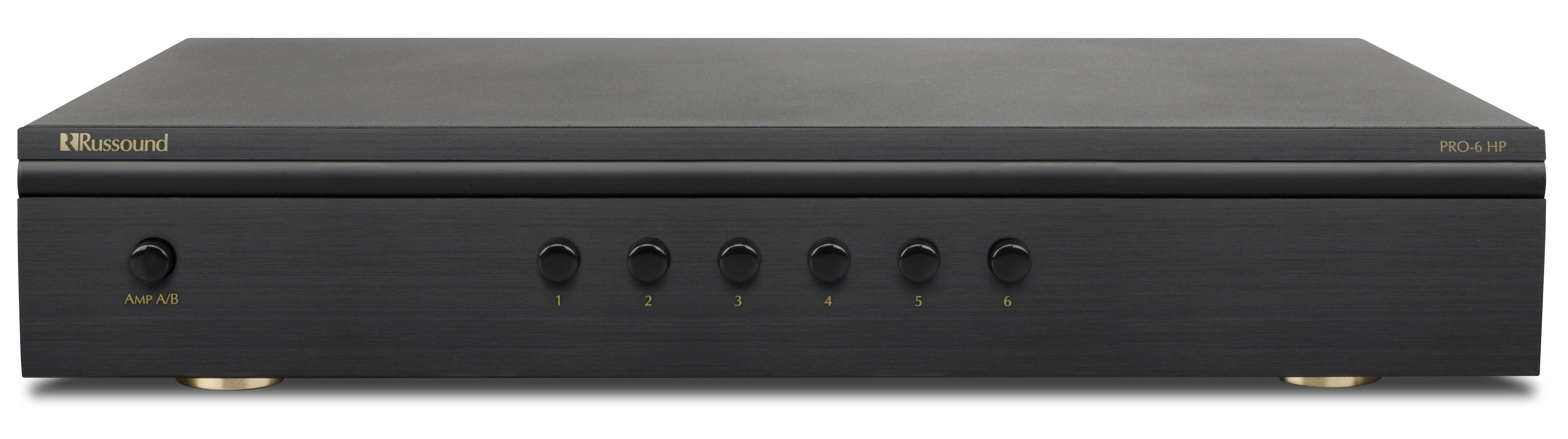

The PRO-6HP is a robust, efficient dual-source speaker selector for up to six pairs of speakers. Designed for demanding applications, this high-quality speaker selector features a low-frequency protection circuit to reduce subsonic signals. This allows higher power operation without amplifier shutdown.Read More
An A/B switch on the front panel allows you to power all your speakers with either of two source amplifiers. The PRO-6HP is designed for use with either 4- or 8-ohm speakers.
The PRO-6HP uses audiophile-grade autoformers for impedance matching to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. A rotary switch on the rear panel sets the appropriate impedance for your amplifier, based on the number of speaker pairs connected.
Lets you control speakers in several rooms from a central location
Printed room labels included
Detachable snap connectors are color coded for easy wire termination
Selectable impedance matching accommodates 4- or 8-ohm speakers
Low-frequency protection circuit helps to guard your amplifier
Audiophile-quality autoformers provide high performance for years
General Specs | |
| Connector Type | Detachable 4-Pole Color-Coded Snap |
| Connection Type | Detachable 4-Pole Color-Coded Snap |
General | |
| Shipping Dimensions | 20.3" (W) x 6.2" (H) x 12.2" (D), (51.4 x 15.6 x 30.9 cm) |
| Shipping Weight | 9.1 lbs (4.2 kg) |
| Connector(S) | Detachable 4-pole color-coded snap connectors |
| Impedance Matching Type | Autoformer |
| Low Frequency Protection | Bipolar capacitor circuit, 6 dB high-pass filter, centered at 30 Hz |
| Max Wire Size | 14 AWG (1.9 mm) |
| Power Handling | 100 watts RMS continuous per channel, 300 watts peak per channel |
| Speaker Impedance | 4 ohms |
