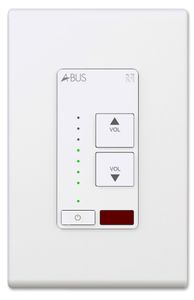

Russound® Amplified Keypad
At a Glance
Simple and elegant, the A-K4 Amplified Keypad provides easy control of your music. Turn it on or off, select from up to six sources, or adjust the volume with just a touch - or use a remote control if you prefer.
Proposition 65 Warning for California Residents
General
| Color | White |
|---|---|
| Shipping Dimensions | 3.0" (W) x 4.5" (H) x 2.5" (D), (7.6 x 11.4 x 6.4 cm) |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| CAT-5e Connection | RJ-45 |
| IR Control | Built-in IR receiver with pass-through |
| Max Cable Length | CAT-5, 250 ft (76 m) maximum |
| Power Requirement(s) | 24 VDC, 660 mA |
| Speaker Connection(s) | Screw terminal connectors |
| Speaker Impedance | 8 ohms per channel |
| User Controls | Power on / off, Source select (with multisource hub), Volume up / down |
Russound® Amplified Keypad
Model #: A-K4
Call for Best Price
At a Glance
Get to know this product.
As inconspicuous as a light switch, the A-K4 complements your decor. Its built-in amplifier powers your room speakers directly, or you can use its line outputs to feed an external amplifier or powered subwoofer.
The A-K4 works with any A-BUS hub or controller, as well as with A-BUS-ready receivers and A-BUS subzones on multi-room controllers.
Uncomplicated control of basic audio functions
Passes IR commands to connected source equipment
Variable line-level output allows connection to an external amplifier or powered subwoofer
Controllable by an A-BUS system remote
