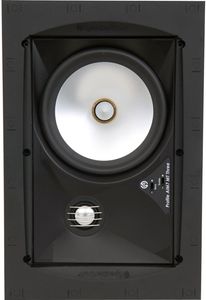

SpeakerCraft® 7" White In-Wall Speaker

SpeakerCraft

Model #:

PROFILE AIM7 MT THREE

Model #: PROFILE AIM7 MT THREE
796161
SpeakerCraft
$99,999.00

At a Glance

Product Dimensions 14"h x 9.5"w x 4"d

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.

These speakers are L & R specific and only sold in pairs

Flangeless Appearance

7″ Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround with Phase Plug

Pivoting 1″ Aluminum Dome Tweeter

Front-Mounted Switches Allows for up to ±3dB of Bass and Treble Adjustment

Useful Documents
Installation Guide
Specifications

General Specs

Cut Out Width8.06
Cut Out Height12.75
Frequency Response40Hz – 20kHz
Color Finish NameWhite
Shipping Width (in.)13
Shipping Height (in.)12.3
RMS Power Handling (Watts)125
ColorWhite
Sensitivity91
Speaker TypeIn-Wall Speakers
Depth (in.)4
Height (in.)14
Width (in.)9.5

General

FamilySpecialty
Woofer Size7 (Inches)
Woofer ConstructionAluminum Cone Woofer with Dual Voice Coil and Rubber Surround with Phase Plug
Frequency Response40Hz – 20kHz
Impedance86 (Ohms)
Power Handling125 (Watts)
Sensitivity91 (dB)
TimbreTimbre-Matched to All Three Series Speakers
Dimensions(H x W x D) 14″ x 9 1/2″ x 4″ (at Full Pivot) (356 mm x 241 mm x 102 mm) (with Grille)
Hole Cutout Dimensions(H x W) 12 ¾” x 8 1/16″ (324 mm x 206 mm)
SwitchesFront-Mounted Switches Allows for up to ±3dB of Bass and Treble Adjustment

Shipping Info

Length16.8 (Inches)
Width13 (Inches)
Height12.3 (Inches)
Weight13 (Lbs)
WarningProposition 65 Warning for California Residents
