Xantech® Slimline 1080p 40M HDMI Extender Set

Xantech

Model #:

XT-CAT-EX40-KIT

Model #: XT-CAT-EX40-KIT
402498
Xantech
$99,999.00

At a Glance

The Xantech® Slim-Line XT-CAT-EX40-KIT HDMI™ extender set offers HDMI distribution over a single CAT cable at outstanding value. The product delivers HDMI & Bi-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Extends HDMI up to a distance of 40m 1080p over a single CAT cable (1080i up to 50m)

Supports video resolutions 480i-1080p (8 bit color support only)

Supports 3D signal display

Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Supports Bi-directional IR from input and output locations

HDCP 1.4 compliant

EDID management

Useful Documents
Manual
Specifications

General Specs

Manufacturer Warranty2 Year Full

Shipping Information

Length6.7 (Inches)
Width5.9 (Inches)
Height2.8 (Inches)
Weight1.5 (Lbs)
Unit of MeasureEach

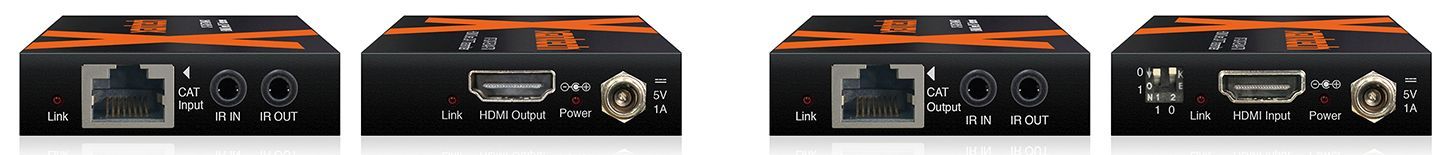

XT-CAT-EX40-TX

Video Input Connectors1x HDMI Type A, 19-pin female
Video Output Connectors1x CAT RJ45 connector
IR Input Ports1x 12V 3.5mm stereo jack
IR Output Ports1x 12V 3.5mm stereo jack

XT-CAT-EX40-TX

Video Input Connectors1x RJ45 connector
Video Output Connectors1x HDMI Type A, 19-pin female
IR Input ports1x 12V 3.5mm stereo jack
IR Output ports1x 12V 3.5mm mono jack
Extender Dimensions (W x D x H)102 x 60 x 15mm (with connections)
Extender Dimensions (W x D x H)98 x 60 x 15mm (without connections)
Ind. Extender Weight0.25kg (excluding accessories)
Carton / Box Dimensions (W x D x H)165 x 145 x 75mm
Shipping Weight0.7kg
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Power Supply2x 5V / 1A DC power supply
